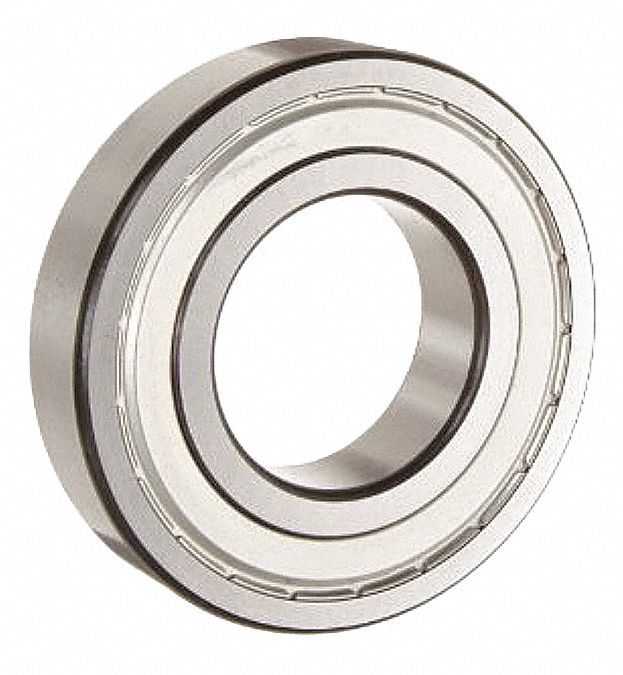

SKF 6205 2Z JEM Radial Ball Bearing, 6205, Dbl Shield, 25 mm Bore, 52 mm OD, 15 mm Wd, Alloy Steel Ring
Original price
$59.00
-
Original price
$59.00
Original price
$59.00
$59.00
-
$59.00
Current price
$59.00
These radial ball bearings are intended for general purpose applications that operate at high speeds with low loads. They have a single row of ball rollers for radial loads, but can support some axial movement.
Double Shielded closures have a shield on both sides to protect the rolling elements from dust and debris, but allow lubricants to get in.
| Bearing Industry Number | 6205 |
| Closure & Seal Type | Double Shielded |
| Bore Diameter | 25 mm |
| Outside Diameter | 52 mm |
| Outer Ring Width | 15 mm |
| Ring Material | Alloy Steel |
| Ball Material | Alloy Steel |
| Cage Material | Steel |
| Shield Material | Steel |
| Number of Rows | One |
| ABEC Rating | 1 |
| Dynamic Radial Load Capacity | 14.8 kN |
| Static Radial Load Capacity | 7.8 kN |
| Maximum Speed | 14,000 RPM |
| Temperature Range | -40 °F to 212 °F |
| Lubricant Material | MT47 Grease |
