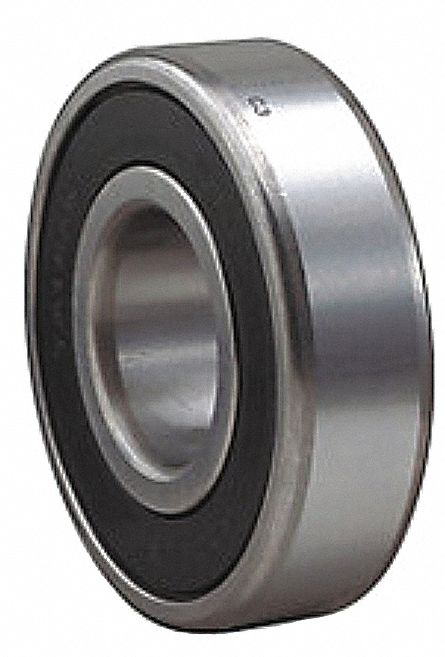

SKF 6208 2RS JEM Radial Ball Bearing, 6208, Dbl Sealed, Contact Seal, 40 mm Bore, 80 mm OD, 18 mm Wd
UPC: | Harmonization / Schedule B : 8482.10.5052
Country of Origin: | Shipping Weight: 0.85 lbs
Original price
$119.83
-
Original price
$119.83
Original price
$119.83
$119.83
-
$119.83
Current price
$119.83
Radial Ball Bearing, Bearing Industry Number 6208, Bore Diameter 40 mm, Closure Double Sealed, Outer Ring Width 18 mm, Outside Diameter 80 mm, Ring Material Alloy Steel, Seal Type Contact, System of Measurement Metric, Cage Material Steel, ABEC Rating 1, Ball Material Alloy Steel, Bore Diameter Tolerance +0/-0.01 mm, Dynamic Radial Load Capacity 7,300 lbf, Includes Retaining Ring No, Lubricant Material MT47 Grease
| Bore Dia. | 40 mm |
|---|---|
| Outside Dia. | 80 mm |
| Width | 18 mm |
| Bore Diameter | 40 mm |
| Outside Diameter | 80 mm |
| Outer Ring Width | 18 mm |
| Outside Dia. Tolerance | +0/-11 micron |
| Bore Diameter Tolerance | +0/-0.01 mm |
| Outside Diameter Tolerance | +0/-11 micron |
| Single Row/Double Row | Single Row |
| Bearing Type | Sealed |
| System of Measurement | Metric |
| Seal/Shield Type | Double Sealed |
| Bearing Industry Number | 6208 |
| ABEC Rating | 1 |
| Closure | Double Sealed |
| Number of Rows | 1 |
| Ring Material | Alloy Steel |
| Ball Material | Alloy Steel |
| Cage Material | Steel |
| Bearing Material | Steel |
| Shield Material | Metal |
| Static Load Capacity | 4,300 lb |
| Industry Number | 3VX630 |
| Seal Material | Synthetic Rubber |
| Lubrication | MT47 Grease |
| Bore Tolerance | +0/-.01mm |
| Dynamic Load Capacity | 7,300 lb |
| Max. RPM | 11,000 RPM |
| ABEC Tolerance | 1 |
| Temp. Range | -40 Degrees to 212 Degrees F |
| Minimum Temperature | -40 Degrees F |
| Includes Retaining Ring | No |
| Dynamic Radial Load Capacity | 7,300 lbf |
| Static Radial Load Capacity | 4,300 lbf |
| Ring Material Grade | 100Cr6 |
| Retaining Ring Groove | No |
| Seal Type | Contact |
| Maximum Axial Load | 7,300 lbf |
| Maximum Temperature | 212 Degrees F |
| Maximum Speed | 11,000 RPM |
| Lubricant Material | MT47 Grease |
| CAD Available | Yes |
| Country of Origin | Multiple |
