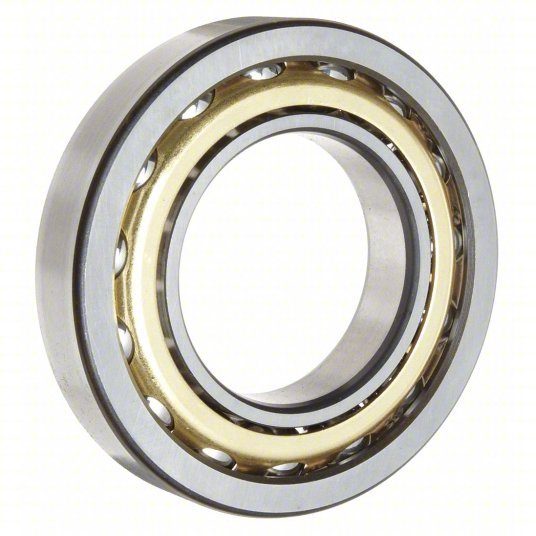

SKF 7313 BECCM Angular Contact Ball Bearing, 1 Row, Tandem, Duplex, 40°, Open, ABEC 3, Brass Cage, 100Cr6

SKF 7313 BECCM Angular Contact Ball Bearing, 1 Row, Tandem, Duplex, 40°, Open, ABEC 3, Brass Cage, 100Cr6

$505.38 - $505.38
$505.38
$505.38 - $505.38
$505.38
Angular Contact Ball Bearing, Bearing Industry Number 7313, Bore Diameter 65 mm, Cage Material Brass, Closure Open, Contact Angle 40 Degrees , Contact Bearing Type Angular Contact, Lubricant Material MT47 Grease, Matched Bearing Type Duplex, Maximum Speed 6,300 RPM, Maximum Temperature 100 Degrees C, Minimum Temperature -40 Degrees C, Number of Rows One, Outside Diameter 140 mm, Overall Width 33 mm, Ring Material Alloy Steel, System of Measurement Metric, ABEC Rating 3
Contact Angle (Degree) 40 Degrees
Cage Material Brass
Type Single Row Explorer
Static Load Capacity (N) 80,000 N
Dynamic Load Capacity (N) 116,000 N
Dynamic Load Capacity (Lb.) 26,100 lb
Standard Preload (N) 380 N
Temp. Range (F) -40 Degrees to 212 Degrees
ABEC Tolerance 3
Standard Preload (lbs.) 86 lb
Lubrication MT47 Grease
Static Load Capacity (Lb.) 18,000 lb
Max. RPM 6,300 RPM
Ring Material Grade 100Cr6
Matched Bearing Type Duplex
Lubricant Material MT47 Grease
Dynamic Radial Load Capacity 108,000 lbf
Contact Angle 40 Degrees
Matched Mount Type Tandem
Ring Material Alloy Steel
Number of Rows One
Bearing Industry Number 7313
Minimum Temperature -40 Degrees C
Contact Bearing Type Angular Contact
ABEC Rating 3
Maximum Speed 6,300 RPM
Load Direction Radial, Thrust
Maximum Temperature 100 Degrees C
System of Measurement Metric
Static Radial Load Capacity 80,000 N
Closure Open
Preload 383 N
