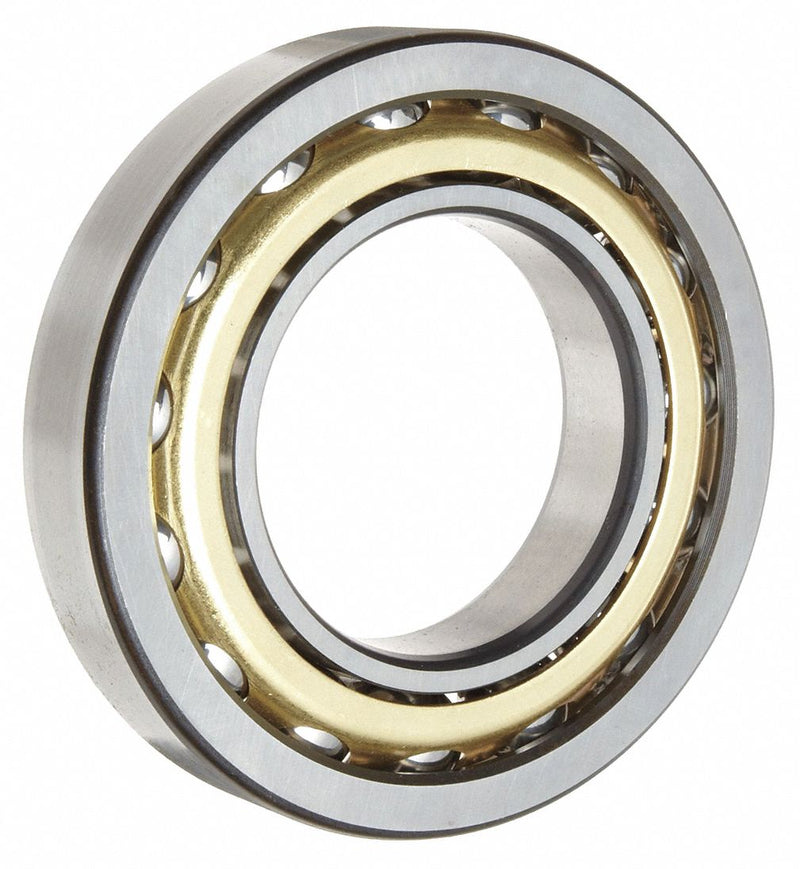

SKF 7316 BECBJ Angular Contact Ball Bearing, 7316, 1 Row, Tandem, Duplex, 40°, Open, ABEC 3, Steel Cage
UPC: | Harmonization / Schedule B : 8482.10.5028
Country of Origin: | Shipping Weight: 8.9 lbs
Original price
$1,071.12
-
Original price
$1,071.12
Original price
$1,071.12
$1,071.12
-
$1,071.12
Current price
$1,071.12
Angular Contact Ball Bearing, Bearing Industry Number 7316, Bore Diameter 80 mm, Cage Material Steel, Closure Open, Contact Angle 40 Degrees , Contact Bearing Type Angular Contact, Lubricant Material MT47 Grease, Matched Bearing Type Duplex, Maximum Speed 5,000 RPM, Maximum Temperature 212 Degrees F, Minimum Temperature -40 Degrees F, Number of Rows One, Outside Diameter 170 mm, Overall Width 39 mm, Ring Material Alloy Steel, System of Measurement Metric, ABEC Rating 3
| Bore Dia. | 80 mm |
|---|---|
| Outside Dia. | 170 mm |
| Width | 39 mm |
| Shaft Fillet Radius | 1 mm |
| Housing Fillet Radius | 1 mm |
| Bore Diameter | 80 mm |
| Outside Diameter | 170 mm |
| Overall Width | 39 mm |
| MFR # | 7316 BECBJ |
| Zoro # | G8089645 |
| UPC # | - |
| Country of Origin | Multiple |
| Contact Angle (Degree) | 40 Degrees |
| Cage Material | Steel |
| Type | Single Row Explorer |
| Temp. Range (F) | -40 Degrees to 212 Degrees |
| Dynamic Load Capacity (Lb.) | 32,100 lb |
| Max. RPM | 5,000 RPM |
| Static Load Capacity (N) | 118,000 N |
| Standard Preload (lbs.) | 86 lb |
| Lubrication | MT47 Grease |
| Standard Preload (N) | 380 N |
| Static Load Capacity (Lb.) | 26,500 lb |
| ABEC Tolerance | 3 |
| Dynamic Load Capacity (N) | 143,000 N |
| ABEC Rating | 3 |
| Maximum Temperature | 212 Degrees F |
| Closure | Open |
| Matched Mount Type | Tandem |
| Contact Bearing Type | Angular Contact |
| Load Direction | Radial, Thrust |
| System of Measurement | Metric |
| Lubricant Material | MT47 Grease |
| Ring Material | Alloy Steel |
| Maximum Speed | 5,000 RPM |
| Preload | 383 N |
| Number of Rows | One |
| Static Radial Load Capacity | 117,990 N |
| Matched Bearing Type | Duplex |
| Contact Angle | 40 Degrees |
| Minimum Temperature | -40 Degrees F |
| Bearing Industry Number | 7316 |
| Dynamic Radial Load Capacity | 143,000 lbf |
| Ring Material Grade | 100Cr6 |
| Industry Number | 7316 |
| Country of Origin | Varies (subject to change) |
