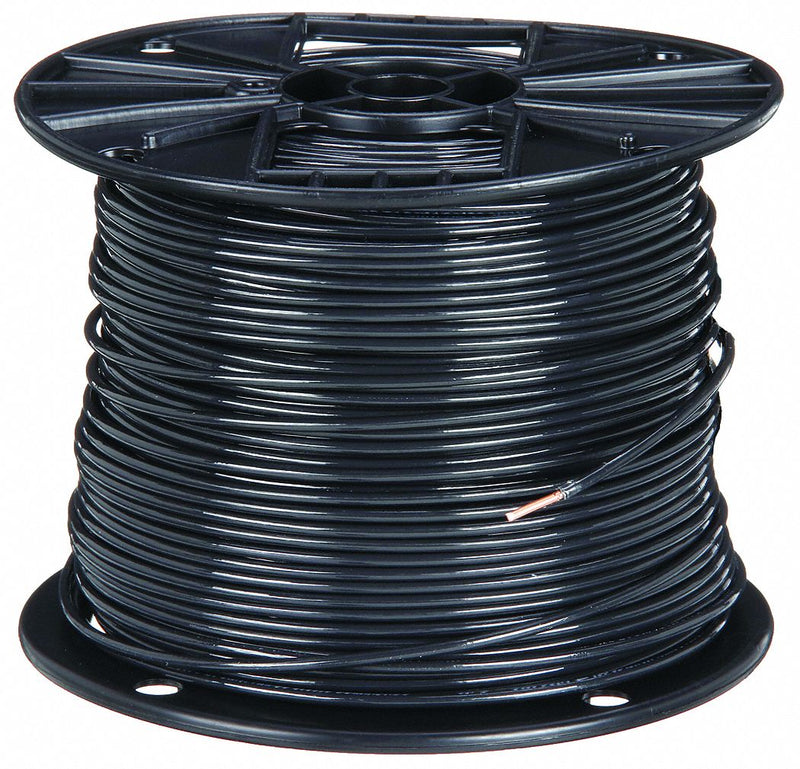

Southwire 11587301 THHN Building Wire, Copper, 12 AWG, Solid, Black, 500 ft Spool, 600 V, Nylon/PVC Insulation, 1 Conductor
Original price
$160.75
-
Original price
$160.75
Original price
$160.75
$160.75
-
$160.75
Current price
$160.75
When you need to run building wire, the Southwire 11587301 Building Wire is a dependable option. UL Listed and CSA approved for both indoor and outdoor use. 12 AWG, 600V AC voltage rating, black nylon jacket suitable for indoor and outdoor applications. 500 ft length per spool. THHN solid conductor for easy connections. Suitable for wet locations and oil exposure (below 75°C) and dry locations (below 90°C). Combination-unilay stranding; soft drawn copper.
| Trade Designation | THHN |
| Conductor Material | Copper |
| Number of Conductors | 1C |
| Wire Color | Black |
| Jacket Color | Black |
| Jacket Material | Nylon |
| Conductor Design | Solid |
| Insulation Material | PVC |
| Voltage | 600V AC |
| Temp. Rating | 194°F |
| Standards | UL Listed, E34382 |
| Stranding | 1 |
| Max. Amps | 20 |
| Packaging | Spool |
| Application | Wet Locations and Locations Exposed to Oil (Below 75°C), Dry Locations (Below 90°C) |
| Wire Size | 12 AWG |
| Length | 500 ft |
| Conductor Size | 12 AWG |
| Nominal Outside Diameter | 0.12 in |
| Insulation Thickness | 15 mils |
| Jacket Thickness | 5 mils |
| Minimum Bend Radius | 1/2 in |
