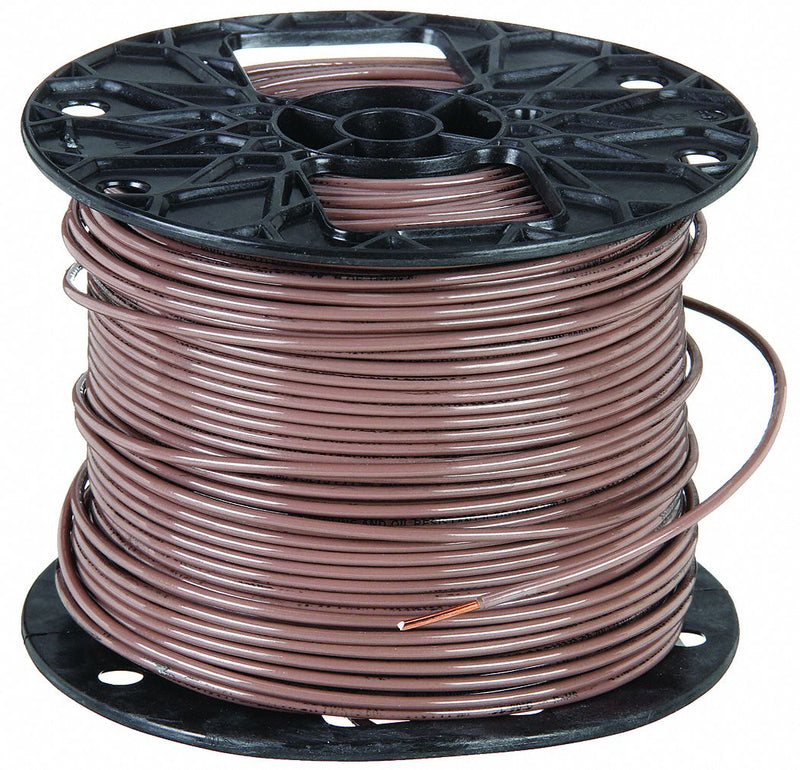

Southwire 11594901 THHN Building Wire, Copper, 12 AWG, Solid, Brown, 500 ft Spool, 600 V, Nylon/PVC Insulation, 1 Conductor
Original price
$170.53
-
Original price
$170.53
Original price
$170.53
$170.53
-
$170.53
Current price
$170.53
Southwire 11594901 THHN Building Wire, Copper, 12 AWG, Solid, Brown, 500 ft Spool, 600 V. UL Listed and CSA approved for both indoor and outdoor use. Nylon jacket for moisture, abrasion, and chemical resistance. THHN solid conductor; suitable for wet locations and oil exposure (below 75°C) and dry locations (below 90°C).
| Trade Designation | THHN |
| Conductor Material | Copper |
| Number of Conductors | 1C |
| Wire Color | Brown |
| Jacket Material | Nylon |
| Conductor Design | Solid |
| Insulation Material | PVC |
| Voltage | 600V AC |
| Temp. Rating | 194°F |
| Standards | UL Listed, E34382 |
| Stranding | 1 |
| Max. Amps | 20 |
| Packaging | Spool |
| Application | Wet Locations and Locations Exposed to Oil (Below 75°C), Dry Locations (Below 90°C) |
| Wire Size | 12 AWG |
| Length | 500 ft |
| Conductor Size | 12 AWG |
| Nominal Outside Diameter | 0.12 in |
| Minimum Bend Radius | 1/2 in |
