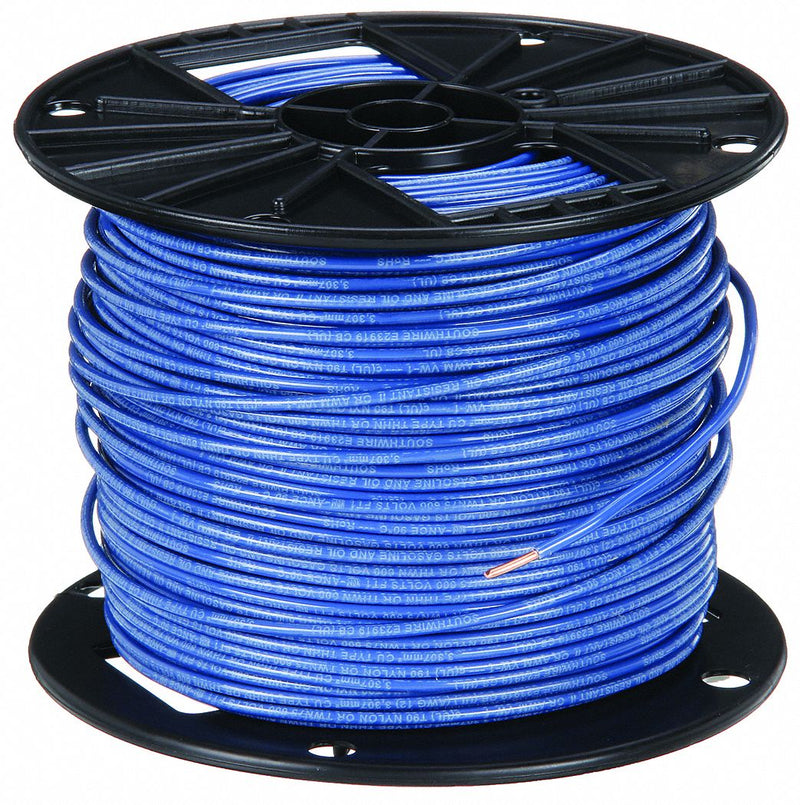

Southwire 11598001 THHN Building Wire, Copper, 10 AWG, 1 Conductor, Solid, Blue, 500 ft, 600V
Original price
$259.36
-
Original price
$259.36
Original price
$259.36
$259.36
-
$259.36
Current price
$259.36
Building Wire, Trade Designation THHN, Wire Size 10 AWG, Wire Color Blue, Length 500 ft, Conductor Design Solid, Number of Conductors 1, Jacket Material Not Applicable, Insulation Material PVC, Nominal Outside Dia. 0.15 in, Packaging Spool, Jacket Color Not Applicable, Voltage 600 V, Stranding 1
| Trade Designation | THHN |
|---|---|
| Conductor Material | Copper |
| Number of Conductors | 1C |
| Wire Color | Blue |
| Jacket Color | Blue |
| Jacket Material | Nylon |
| Conductor Design | Solid |
| Insulation Material | PVC |
| Voltage | 600V AC |
| Temp. Rating | 194°F |
| Standards | UL Listed |
| Max. Amps | 30 |
| Stranding | 1 |
| Packaging | Spool |
| Application | Wet Locations and Locations Exposed to Oil (Below 75°C), Dry Locations (Below 90°C). Voltage for all applications is 600 volts. THWN- Wet locations not to exceed 75° C or dry locations not to exceed 90° C or locations not to exceed 75° C when exposed to oil |
| Allowable Ampacity At 75C | 30 |
| Construction | Southwire® THHN copper conductors are made with soft drawn copper. Combination-unilay stranding. The wire is covered with a tough heat and moisture resistant PVC insulation with an overall nylon jacket. Marked as THWN. |
| Fire Resistance Rating | Not Rated |
| Number of Strands | 1 |
| Temperature Rating - Maximum Wet | 167 Degrees F |
| Temperature Rating - Maximum Dry | 194 Degrees F |
| Conductor Insulation Material | Nylon, PVC |
| Conductor Insulation Color | Blue |
| Country of Origin | United States |
