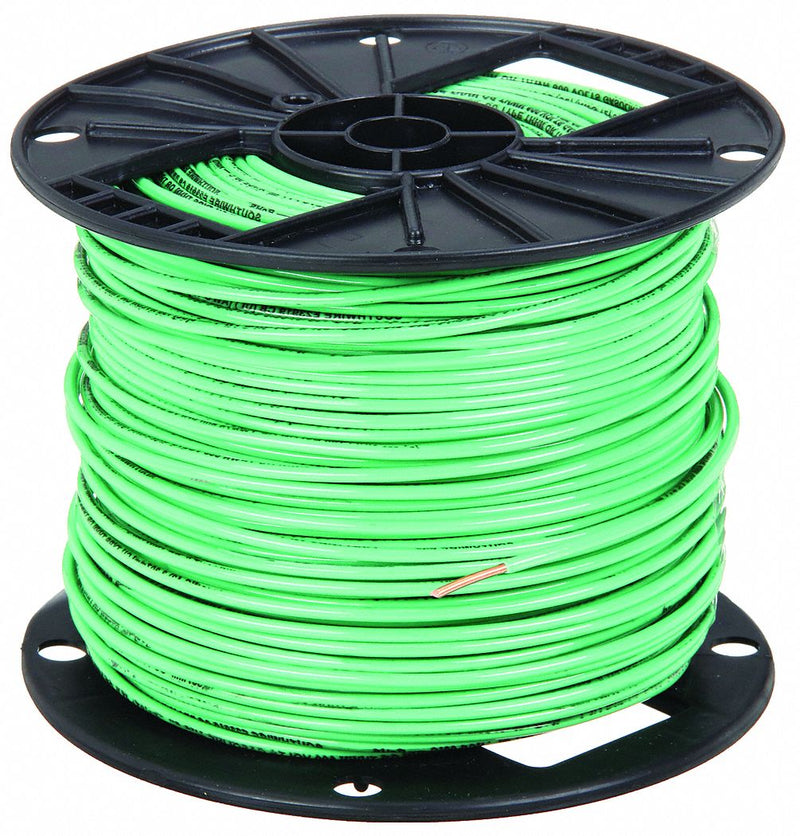

Southwire 11599801 Building Wire, THHN, Copper, 10 AWG, Solid, 1 Conductor, Green, 500 ft, 600V
Original price
$281.40
-
Original price
$281.40
Original price
$281.40
$281.40
-
$281.40
Current price
$281.40
Building Wire, Trade Designation THHN, Wire Size 10 AWG, Wire Color Green, Length 500 ft, Conductor Design Solid, Number of Conductors 1, Jacket Material Not Applicable, Insulation Material PVC, Nominal Outside Dia. 0.15 in, Packaging Spool, Jacket Color Not Applicable, Voltage 600 V, Stranding 1
| Wire Size | 10 AWG |
| Length | 500 ft |
| Nominal Outside Dia. | 0.15 in |
| Overall Length | 500 ft |
| Insulation Thickness (Mils) | 20mils |
| Jacket Thickness (Mils) | 5mils |
| Minimum Bend Radius | 5/8 in |
| Nominal Outside Diameter | 0.15 in |
| Conductor Size | 10 AWG |
| Trade Designation | THHN |
| Conductor Material | Copper |
| Number of Conductors | 1C |
| Green | |
| Jacket Color | Green |
| Jacket Material | Nylon |
| Conductor Design | Solid |
| Insulation Material | PVC |
| Voltage | 600V AC |
| Temp. Rating | 194°F |
| Standards | UL Listed, E34382 |
| Packaging | Spool |
| Stranding | 1 |
| Max. Amps | 30 |
| Application | Wet Locations and Locations Exposed to Oil (Below 75°C), Dry Locations (Below 90°C) |
| Allowable Ampacity At 75C | 30 |
| Conductor Insulation Color | Green |
| Fire Resistance Rating | Not Rated |
| Temperature Rating - Maximum Dry | 194 Degrees F |
| Conductor Insulation Material | Nylon, PVC |
| Number of Strands | 1 |
| Temperature Rating - Maximum Wet | 167 Degrees F |
| Country of Origin | United States |
