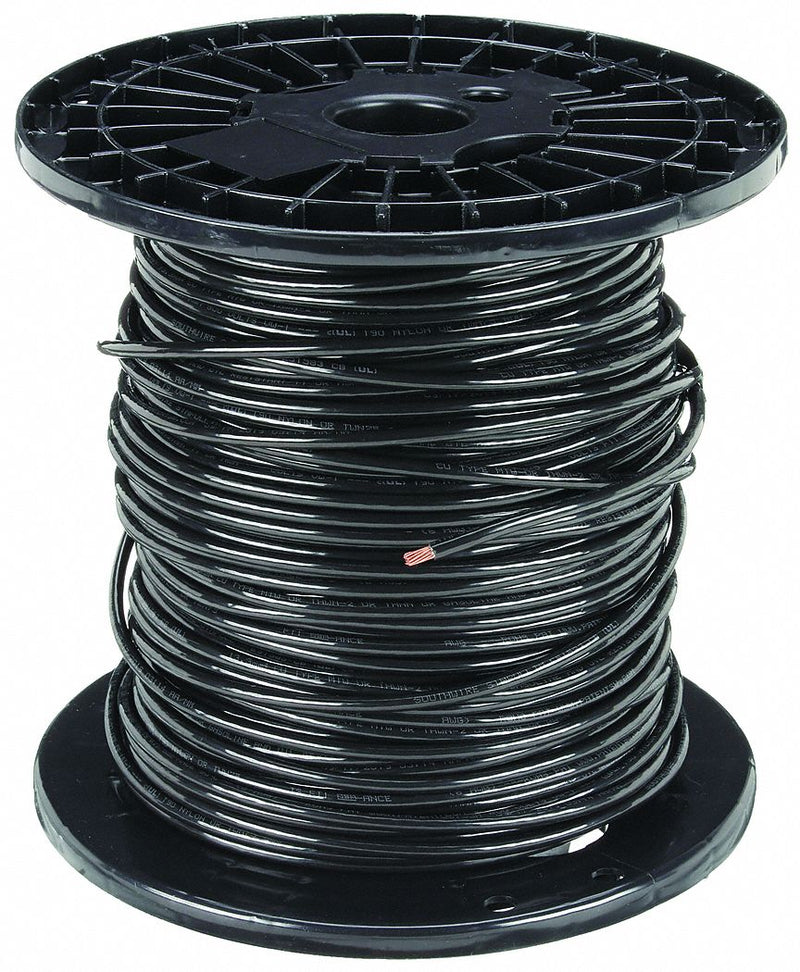

Southwire 20488312 SIMpull THHN Building Wire, Copper, 8 AWG, 1 Conductor, Stranded, Black, 500 ft, 600V
Original price
$485.89
-
Original price
$485.89
Original price
$485.89
$485.89
-
$485.89
Current price
$485.89
This Southwire Building Wire is an 8 AWG wire with a 500 ft length and 600V AC voltage. It is suitable for use in residential, commercial and industrial applications. The black nylon jacket on this building wire protects it from abrasion and moisture. This THHN wire has a stranded conductor design that makes it more flexible than solid conductors. Its black color offers high visibility so you can quickly find the wires you need in your installation. The THHN wire meets UL standards for both underground and overground installations. This Southwire Building Wire is an excellent choice for your next project because of its quality construction, durability and flexibility.
| Trade Designation | THHN |
|---|---|
| Conductor Material | Copper |
| Number of Conductors | 1C |
| Wire Color | Black |
| Jacket Color | Black |
| Jacket Material | Nylon |
| Conductor Design | Stranded |
| Insulation Material | PVC |
| Voltage | 600V AC |
| Temp. Rating | 194°F |
| Standards | UL Listed |
| Max. Amps | 50 |
| Stranding | 19 |
| Packaging | Spool |
| Application | Wet Locations and Locations Exposed to Oil (Below 75°C) |
| Construction | Southwire® SIMpull THHN® copper conductors are made with soft drawn copper. Combination-unilay stranding. The wire is covered with a tough heat and moisture resistant PVC insulation with an overall nylon jacket utilizing SIMpull® Technology. Marked as THWN-2. |
| Applications | Southwire® SIMpull THHN® copper conductors are primarily used in conduit and cable trays for services, feeders and branch circuits in commercial or industrial applications as specified in the National Electrical Code. Voltage for all applications is 600 volts. SIMpull THHN® copper conductors are designed to be installed without application of a pulling lubricant. THWN-2- Wet or dry locations not to exceed 90° C or locations not to exceed 75° C when exposed to oil |
| Allowable Ampacity At 75C | 50 |
| Allowable Ampacity At 90C | 55 |
| Conductor Insulation Material | Nylon, PVC |
| Fire Resistance Rating | Not Rated |
| Temperature Rating - Maximum Wet | 167 Degrees F |
| Number of Strands | 19 |
| Conductor Insulation Color | Black |
| Series | Simpull(R) |
| Temperature Rating - Maximum Dry | 140 Degrees F |
| Country of Origin | United States |
