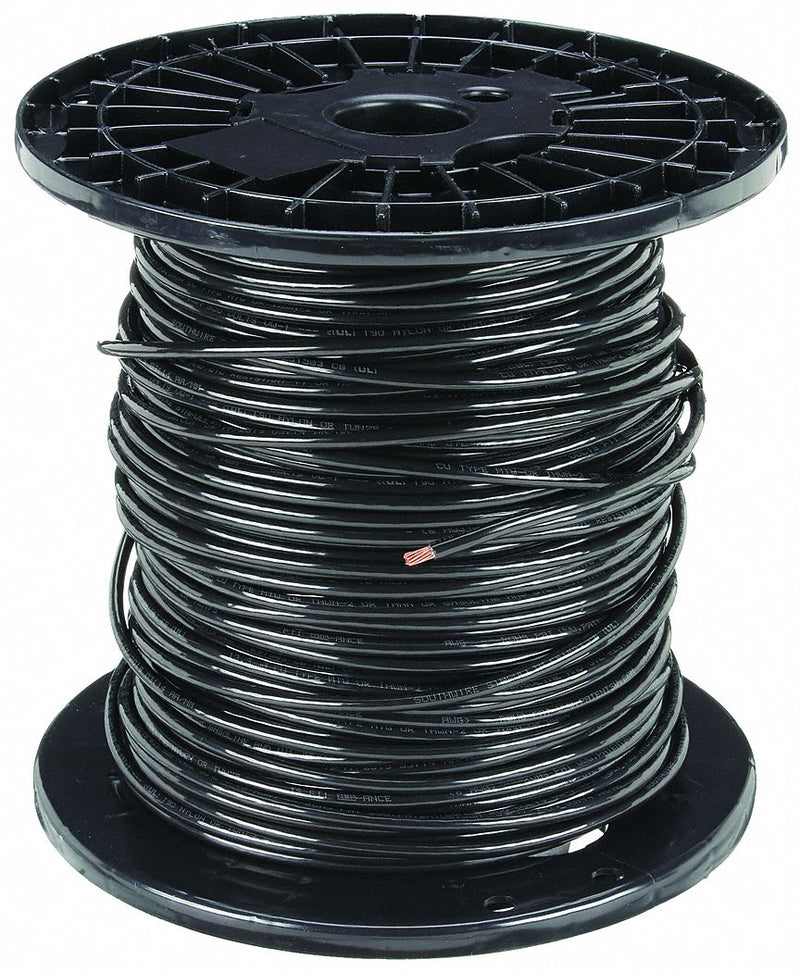

Southwire 20499001 Simpull THHN Building Wire, Copper, 4 AWG, 1C Stranded, Black, 500 ft Spool, 600V
Original price
$1,272.18
-
Original price
$1,272.18
Original price
$1,272.18
$1,272.18
-
$1,272.18
Current price
$1,272.18
Building Wire, Trade Designation THHN, Wire Size 4 AWG, Wire Color Black, Length 500 ft, Conductor Design Stranded, Number of Conductors 1, Insulation Material PVC, Nominal Outside Dia. 0.32 in, Packaging Spool, Voltage 600 V, Stranding 19
| Trade Designation | THHN |
|---|---|
| Conductor Material | Copper |
| Number of Conductors | 1C |
| Wire Color | Black |
| Jacket Color | Black |
| Jacket Material | Nylon |
| Conductor Design | Stranded |
| Insulation Material | PVC |
| Voltage | 600V AC |
| Temp. Rating | 194°F |
| Standards | UL Listed, E34382 |
| Max. Amps | 85 |
| Packaging | Spool |
| Stranding | 19 |
| Allowable Ampacity At 60C | 70 |
| Construction | Southwire SIMpull THHN copper conductors are made with soft drawn copper. Combination-unilay stranding. The wire is covered with a tough heat and moisture resistant PVC insulation with an overall nylon jacket utilizing SIMpull Technology. Marked as THWN-2. |
| Applications | Southwire SIMpull THHN copper conductors are primarily used in conduit and cable trays for services, feeders and branch circuits in commercial or industrial applications as specified in the National Electrical Code. Voltage for all applications is 600 volts. THWN-2 - Wet or dry locations not to exceed 90 C or locations not to exceed 75 C when exposed to oil. |
| Allowable Ampacity At 90C | 100 |
| Allowable Ampacity At 75C | 85 |
| Number of Strands | 19 |
| Fire Resistance Rating | Not Rated |
| Temperature Rating - Maximum Wet | 167 Degrees F |
| Conductor Insulation Color | Black |
| Series | Simpull(R) |
| Temperature Rating - Maximum Dry | 194 Degrees F |
| Conductor Insulation Material | Nylon, PVC |
| Country of Origin | United States |
