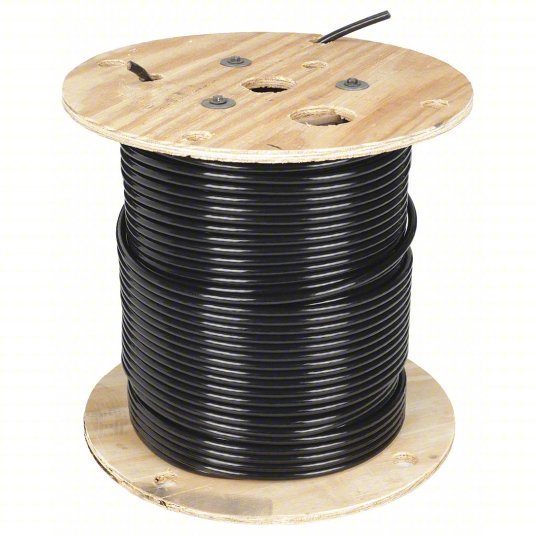

Southwire 20502101 Building Wire, THHN, 2 AWG, 500 ft, Black, Nylon Jacket, PVC Insulation
Original price
$1,465.36
-
Original price
$1,465.36
Original price
$1,465.36
$1,465.36
-
$1,465.36
Current price
$1,465.36
If you are looking for a building wire that is durable and easy to use, the Southwire Building Wire is what you need. It has a voltage of 600V AC and comes with a 2 AWG size. The length of this building wire is 500 ft. Designed for both indoor and outdoor use, it comes with a black nylon jacket that provides insulation from moisture. Its stranded conductor ensures high conductivity, while its PVC jacket protects against abrasion. When it comes to construction materials, the Southwire Building Wire will get the job done without any problems.
| Item | Building Wire |
| Trade Designation | THHN |
| Voltage | 600V AC |
| Jacket Color | Black |
| Insulation Material | PVC |
| Temp. Rating | 194 Degrees F |
| Jacket Material | Nylon |
| Wire Color | Black |
| Number of Conductors | 1 |
| Conductor Design | Stranded |
| Wire Type - Wire and Cable | THHN |
| Jacket Material - Wire and Cable | Nylon |
| Stranded / Solid | Stranded |
| Max. Amps | 115 |
| Insulation Material - Wire and Cable | PVC |
| Wire Type | THHN |
| Standards | UL,E34382 |
| Insulation Material (Wire and Cable) | PVC |
| Wire and Cable Item | Building Wire |
| Packaging | Wood Reel with Fiber Drum |
| Stranding | 19 |
| Application | Wet or Dry Locations (Below 90°C), Locations Exposed to Oil (Below 75°C) |
| Nom. Od (Mils) | 382mils |
| No. of Strands | 19 |
| Allowable Ampacity At 60C | 95 |
| Allowable Ampacity At 75C | 115 |
| Allowable Ampacity At 90C | 130 |
| Jacket Thickness (Mils) | 7mils |
| No. of Conductors | 1 |
| Applications | ApplicationSouthwire® SIMpull THHN® copper conductors are primarily used in conduit and cable trays for services, feeders and branch circuits in commercial or industrial applications as specified in the National Electrical Code. Voltage for all applications is 600 volts. SIMpull THHN® copper conductors are designed to be installed without application of a pulling lubricant.THWN-2- Wet or dry locations not to exceed 90° C or locations not to exceed 75° C when exposed to oil |
| Construction | ConstructionSouthwire® SIMpull THHN® copper conductors are made with soft drawn copper. Combination-unilay stranding. The wire is covered with a tough heat and moisture resistant PVC insulation with an overall nylon jacket utilizing SIMpull® Technology. Marked as THWN-2. Marked sunlight resistant. |
| Insulation Thickness (Mils) | 40mils |
