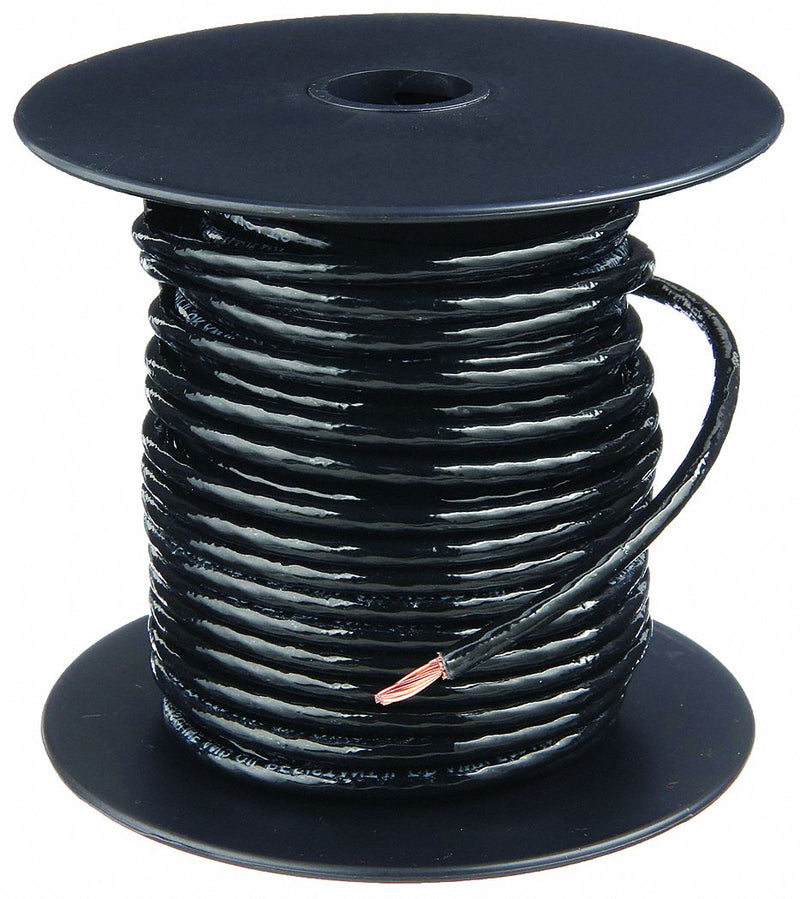

Southwire 22955984 Building Wire, Copper, 14 AWG, 1 Conductors, Stranded, Black, 100 ft Lg, THHN
UPC: 032886007026 | Harmonization / Schedule B : 8544.49.3040
Country of Origin: United States | Shipping Weight: 1.8 lbs
Original price
$58.68
-
Original price
$58.68
Original price
$58.68
$58.68
-
$58.68
Current price
$58.68
Building Wire, Trade Designation THHN, Wire Size 14 AWG, Wire Color Black, Length 100 ft, Conductor Design Stranded, Number of Conductors 1, Jacket Material Not Applicable, Insulation Material PVC, Nominal Outside Dia. 0.11 in, Packaging Spool, Jacket Color Not Applicable, Voltage 600 V, Stranding 19
| Trade Designation | THHN |
|---|---|
| Wire Size | 14 AWG |
| Conductor Material | Copper |
| Number of Conductors | 1C |
| Wire Color | Black |
| Jacket Color | Black |
| Jacket Material | Nylon |
| Conductor Design | Stranded |
| Insulation Material | PVC |
| Voltage | 600V AC |
| Length | 100 ft |
| Temp. Rating | 194°F |
| Standards | UL Listed |
| Packaging | Spool |
| Max. Amps | 15 A |
| Nominal Outside Dia. | 0.11 in |
| Stranding | 19 |
| Application | Wet Locations and Locations Exposed to Oil (Below 75°C), Dry Locations (Below 90°C) |
| Insulation Thickness (Mils) | 15mils |
| Jacket Thickness (Mils) | 5mils |
| Construction | ConstructionSouthwire® THHN copper conductors are made with soft drawn copper. Combination-unilay stranding. The wire is covered with a tough heat and moisture resistant PVC insulation with an overall nylon jacket. Marked as THWN. |
| Allowable Ampacity At 75C | 15 |
| Applications | ApplicationTHHN copper conductors are primarily used in conduit and cable trays for services, feeders and branch circuits in commercial or industrial applications as specified in the National Electrical Code. Voltage for all applications is 600 volts.THWN- Wet locations not to exceed 75° C or dry locations not to exceed 90° C or locations not to exceed 75° C when exposed to oil |
| Conductor Size | 14 AWG |
| Overall Length | 100 ft |
| Fire Resistance Rating | Not Rated |
| Temperature Rating - Maximum Wet | 167 Degrees F |
| Conductor Insulation Color | Black |
| Nominal Outside Diameter | 0.11 in |
| Temperature Rating - Maximum Dry | 194 Degrees F |
| Minimum Bend Radius | 1/2 in |
| Number of Strands | 19 |
| Conductor Insulation Material | Nylon, PVC |
| Series | Not Applicable |
| Package Quantity | 1 |
| Country of Origin | United States |
