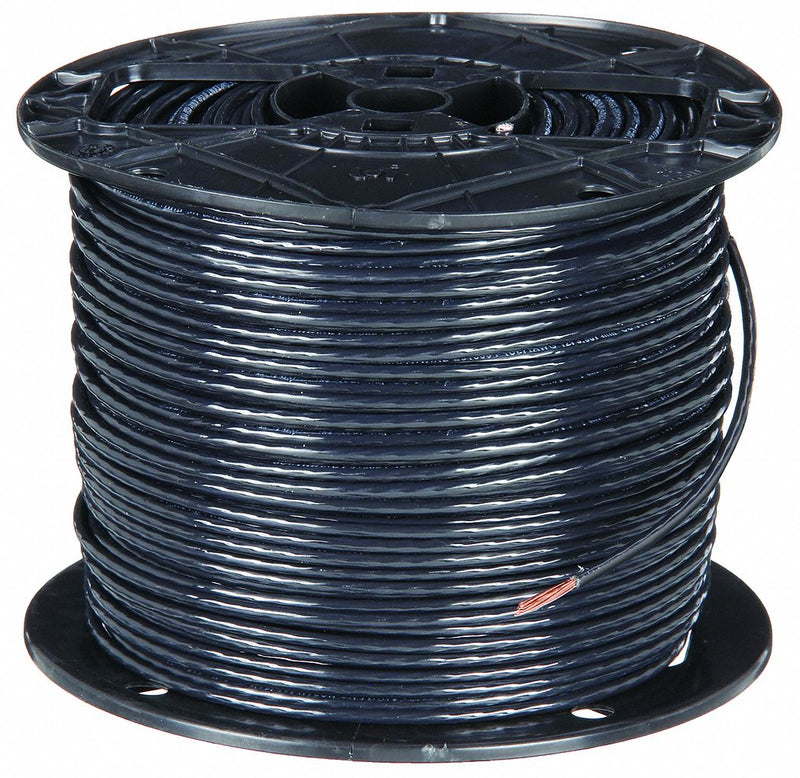

Southwire 22964101 THHN Building Wire, Copper, 12 AWG, 1 Conductor, Stranded, Black, 500 ft, 600V
Original price
$189.73
-
Original price
$189.73
Original price
$189.73
$189.73
-
$189.73
Current price
$189.73
This Southwire THHN Building Wire is perfect for running electrical wiring in your home. The building wire has a 12 AWG size and can be used for 600V AC voltage. It comes with a length of 500 ft and black nylon jacket. This black building wire is made of stranded conductors, making it highly flexible. Designed to protect against corrosion, the black conductor offers maximum durability. The Southwire THHN Building Wire is the perfect choice for your next electrical project.
| Trade Designation | THHN |
|---|---|
| Conductor Material | Copper |
| Number of Conductors | 1C |
| Wire Color | Black |
| Jacket Color | Black |
| Jacket Material | Nylon |
| Conductor Design | Stranded |
| Insulation Material | PVC |
| Voltage | 600V AC |
| Temp. Rating | 194Β°F |
| Standards | UL Listed, E34382 |
| Stranding | 19 |
| Packaging | Spool |
| Max. Amps | 20 |
| Application | Wet Locations and Locations Exposed to Oil (Below 75Β°C), Dry Locations (Below 90Β°C) |
| Fire Resistance Rating | Not Rated |
| Temperature Rating - Maximum Dry | 194 Degrees F |
| Conductor Insulation Material | Nylon, PVC |
| Number of Strands | 19 |
| Conductor Insulation Color | Black |
| Temperature Rating - Maximum Wet | 167 Degrees F |
| Country of Origin | United States |
