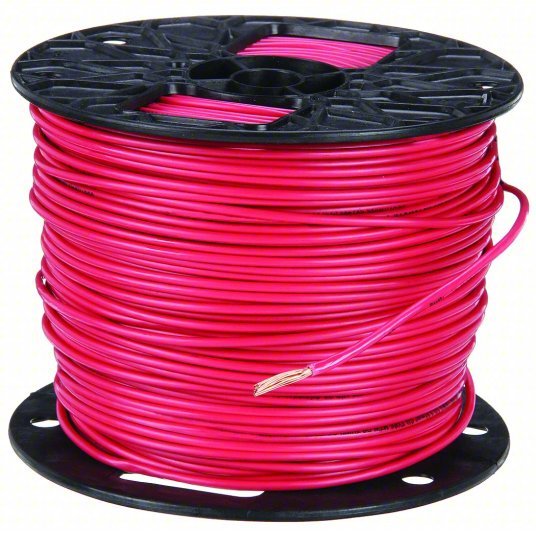

Southwire 22966601 Building Wire 12 AWG Wire Size, 1 Conductors, 500 ft Lg, THHN
Southwire 22966601 Building Wire 12 AWG Wire Size, 1 Conductors, 500 ft Lg, THHN
Southwire 22966601 Building Wire 12 AWG Wire Size, 1 Conductors, 500 ft Lg, THHN
Southwire 22966601 Building Wire 12 AWG Wire Size, 1 Conductors, 500 ft Lg, THHN

Southwire 22966601 Building Wire 12 AWG Wire Size, 1 Conductors, 500 ft Lg, THHN

$157.99 - $157.99
$157.99
$157.99 - $157.99
$157.99

Thermoplastic high-heat-resistant nylon (THHN) building wire is a coated wire typically run through conduit or cable trays. This general purpose wire is used to supply an electrical current in a range of indoor wiring projects, including control circuits and appliances. It has a durable nylon jacket that resists abrasion, protects against shock, and shields the thermoplastic insulation and metal conductor from damage.

Item Building Wire
Trade Designation THHN
Voltage 600V AC
Jacket Color Red
Insulation Material PVC
Temp. Rating 194 Degrees F
Jacket Material Nylon
Wire Color Red
Number of Conductors 1
Conductor Design Stranded
Wire and Cable Item Building Wire
Insulation Material - Wire and Cable PVC
Stranding 19
Packaging Plastic Spool
Wire Type - Wire and Cable THHN
Max. Amps 20
Standards UL,E34382
Jacket Material - Wire and Cable Nylon
Stranded / Solid Stranded
Insulation Material (Wire and Cable) PVC
Wire Type THHN
Application Wet Locations and Locations Exposed to Oil (Below 75°C), Dry Locations (Below 90°C)
No. of Conductors 1
Allowable Ampacity At 90C 20
Insulation Thickness (Mils) 15mils
Applications ApplicationTHHN copper conductors are primarily used in conduit and cable trays for services, feeders and branch circuits in commercial or industrial applications as specified in the National Electrical Code. Voltage for all applications is 600 volts.THWN- Wet locations not to exceed 75° C or dry locations not to exceed 90° C or locations not to exceed 75° C when exposed to oil.
Allowable Ampacity At 75C 20
Allowable Ampacity At 60C 20
Construction ConstructionSouthwire® THHN copper conductors are made with soft drawn copper. Combination-unilay stranding. The wire is covered with a tough heat and moisture resistant PVC insulation with an overall nylon jacket. Marked as THWN.
No. of Strands 19
Jacket Thickness (Mils) 5mils
Nom. Od (Mils) 132mils
