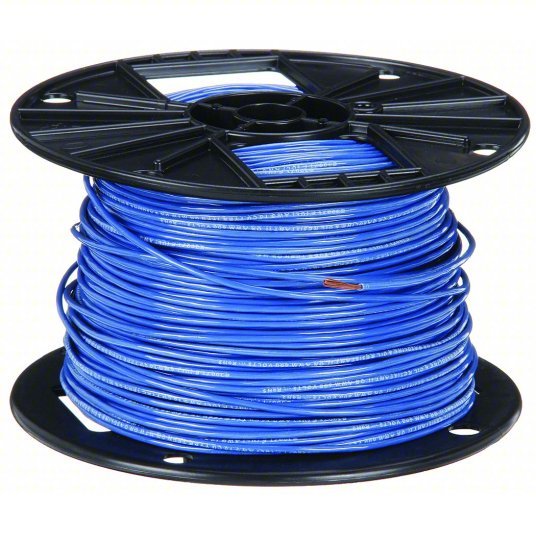

Southwire 22967401 Building Wire, THHN, 12 AWG, 500 ft, Blue, Nylon Jacket, PVC Insulation
Original price
$153.20
-
Original price
$153.20
Original price
$153.20
$153.20
-
$153.20
Current price
$153.20
THHN copper conductors are primarily used in conduit and cable trays for services, feeders and branch circuits in commercial or industrial applications as specified in the National Electrical Code. Voltage for all applications is 600 volts.
- THWN- Wet locations not to exceed 75° C or dry locations not to exceed 90° C or locations not to exceed 75° C when exposed to oil.
| Item | Building Wire |
| Trade Designation | THHN |
| Voltage | 600V AC |
| Jacket Color | Blue |
| Insulation Material | PVC |
| Temp. Rating | 194 Degrees F |
| Jacket Material | Nylon |
| Wire Color | Blue |
| Number of Conductors | 1 |
| Conductor Design | Stranded |
| Stranding | 19 |
| Wire and Cable Item | Building Wire |
| Standards | UL,E34382 |
| Stranded / Solid | Stranded |
| Insulation Material - Wire and Cable | PVC |
| Jacket Material - Wire and Cable | Nylon |
| Insulation Material (Wire and Cable) | PVC |
| Max. Amps | 20 |
| Wire Type | THHN |
| Packaging | Plastic Spool |
| Wire Type - Wire and Cable | THHN |
| Application | Wet Locations and Locations Exposed to Oil (Below 75°C), Dry Locations (Below 90°C) |
| Construction | ConstructionSouthwire® THHN copper conductors are made with soft drawn copper. Combination-unilay stranding. The wire is covered with a tough heat and moisture resistant PVC insulation with an overall nylon jacket. Marked as THWN. |
| Insulation Thickness (Mils) | 15mils |
| No. of Conductors | 1 |
| Applications | ApplicationTHHN copper conductors are primarily used in conduit and cable trays for services, feeders and branch circuits in commercial or industrial applications as specified in the National Electrical Code. Voltage for all applications is 600 volts.THWN- Wet locations not to exceed 75° C or dry locations not to exceed 90° C or locations not to exceed 75° C when exposed to oil. |
| Allowable Ampacity At 90C | 20 |
| Allowable Ampacity At 75C | 20 |
| Nom. Od (Mils) | 132mils |
| No. of Strands | 19 |
| Jacket Thickness (Mils) | 5mils |
| Allowable Ampacity At 60C | 20 |
