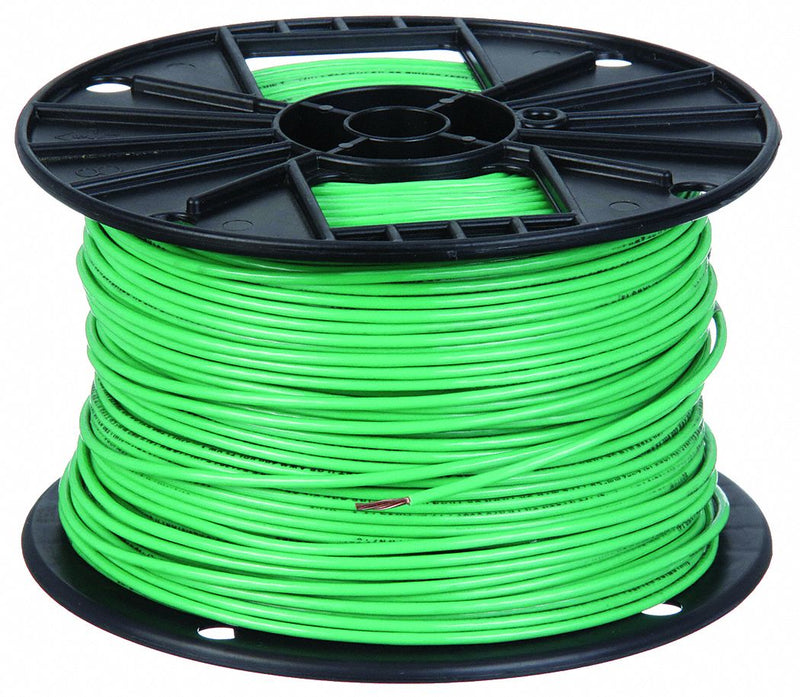

Southwire 22977301 Building Wire, Copper, 10 AWG, 1 Conductor, Stranded, Green, 500 ft, THHN
Original price
$313.00
-
Original price
$313.00
Original price
$313.00
$313.00
-
$313.00
Current price
$313.00
Building Wire, Trade Designation THHN, Wire Size 10 AWG, Wire Color Green, Length 500 ft, Conductor Design Stranded, Number of Conductors 1, Jacket Material Not Applicable, Insulation Material PVC, Nominal Outside Dia. 0.16 in, Packaging Spool, Jacket Color Not Applicable, Voltage 600 V, Stranding 19
| Trade Designation | THHN |
|---|---|
| Conductor Material | Copper |
| Number of Conductors | 1C |
| Wire Color | Green |
| Jacket Color | Green |
| Jacket Material | Nylon |
| Conductor Design | Stranded |
| Insulation Material | PVC |
| Voltage | 600V AC |
| Temp. Rating | 194°F |
| Standards | UL Listed, E34382 |
| Max. Amps | 30 |
| Stranding | 19 |
| Packaging | Spool |
| Application | Wet Locations and Locations Exposed to Oil (Below 75°C), Dry Locations (Below 90°C) |
| Construction | Southwire® THHN copper conductors are made with soft drawn copper. Combination-unilay stranding. The wire is covered with a tough heat and moisture resistant PVC insulation with an overall nylon jacket. Marked as THWN. |
| Applications | THHN copper conductors are primarily used in conduit and cable trays for services, feeders and branch circuits in commercial or industrial applications as specified in the National Electrical Code. Voltage for all applications is 600 volts. THWN- Wet locations not to exceed 75° C or dry locations not to exceed 90° C or locations not to exceed 75° C when exposed to oil |
| Allowable Ampacity At 75C | 30 |
| Temperature Rating - Maximum Wet | 167 Degrees F |
| Number of Strands | 19 |
| Conductor Insulation Color | Green |
| Conductor Insulation Material | Nylon, PVC |
| Temperature Rating - Maximum Dry | 194 Degrees F |
| Fire Resistance Rating | Not Rated |
