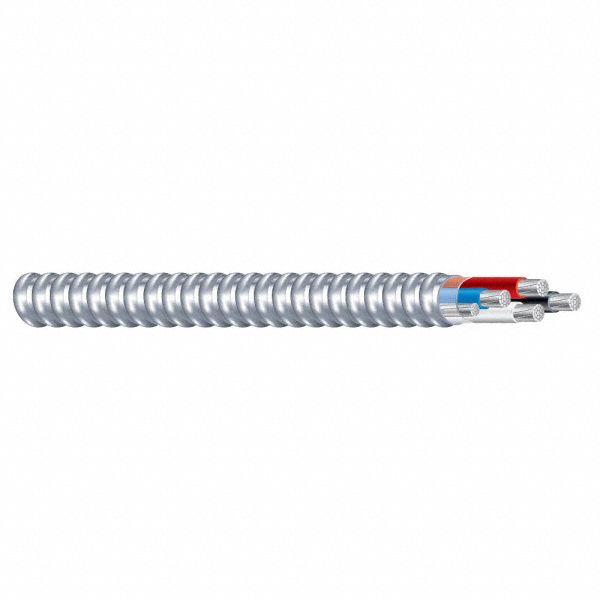

Southwire 68584201 Metal Clad Cable, 10 AWG, 3 Conductors, Copper, 250 ft, Aluminum, Std, THHN/THWN
UPC: 032886346163 | Harmonization / Schedule B : 8544.49.3080
Country of Origin: United States | Shipping Weight: 47.1 lbs
Original price
$932.20
-
Original price
$932.20
Original price
$932.20
$932.20
-
$932.20
Current price
$932.20
Metal Clad Cable, Trade Designation MC, Wire Size 10 AWG, Number of Conductors 3, Wire Color Black/White/Red/Green, Jacket Color Silver, Length 250 ft, Conductor Design Solid, Jacket Material Aluminum, Insulation Material THHN/THWN, Nominal Outside Dia. 580 mi, Packaging Coil, Voltage 600 V, Temp. Rating 194 Degrees F Dry
| Trade Designation | MC |
|---|---|
| Wire Size | 10 AWG |
| Conductor Material | Copper |
| Number of Conductors | 3C with Ground |
| Wire Color | Black/Green/Red/White |
| Jacket Color | Silver |
| Jacket Material | Aluminum |
| Conductor Design | Solid |
| Insulation Material | THHN/THWN |
| Voltage | 600V AC |
| Length | 250 ft |
| Temp. Rating | 194°F |
| Standards | IEEE 1202/FT4, NFPA 70, REACH/RoHS-2 (Chemical Limit) Compliant, UL, UL 1569, UL 1685, UL 83 |
| Overall Length | 250 ft |
| Shielding | Shielded |
| Shielding Material | Aluminum |
| Conductor Size | 10 AWG |
| Application | Commercial, Industrial, Institutional, Multiresidential Buildings |
| Nominal Outside Dia. | 580 mi |
| Packaging | Coil |
| Series | Armorlite(R) |
| Grounding Conductor Size | 10 AWG |
| Grounding Conductor Material | Copper |
| Temperature Rating - Maximum Wet | Not Applicable |
| Number of Neutrals | 0 |
| Number of Shielded Pairs | 0 |
| Grounding Conductor Insulation Material | Not Applicable |
| Includes Bonding Wire | No Bonding Wire |
| Trade Designation - Conductors | THHN, THWN |
| Conductor Insulation Color | Black, Red, White |
| Grounding Conductor Insulation Color | Green |
| Nominal Outside Diameter | 0.58 in |
| Temperature Rating - Maximum Dry | 194 Degrees F |
| Number of Strands | 1 |
| Number of Ground Conductors | 1 |
| Hazardous Location Specification | Class I, Div 2, Group A, B, C, D, Class II, Div 2, Group E, F, G, Class III, Div 1 |
| Package Quantity | 1 |
| Country of Origin | United States |
