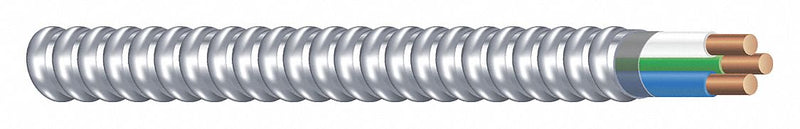

Southwire 68948901 Armorlite Metal Clad Armored Cable, MC, 12 AWG 2C+G, 250 ft, Blue/White Conductors, Aluminum Jacket, 600V
Original price
$388.92
-
Original price
$388.92
Original price
$388.92
$388.92
-
$388.92
Current price
$388.92
Standard metal-clad building cables consist of insulated conductors protected by an interlocked metal jacket. They are used for various industrial, commercial, and residential power distribution applications. MC (metal-clad) cable is electrical wiring with insulated conductors enclosed in a corrugated metal jacket. Its jacket offers robust protection against impacts, abrasions, and mechanical damage. It's commonly used to carry power in commercial and residential applications where physical wire damage is a concern.
| Series | Armorlite |
| Trade Designation | MC |
| Trade Designation - Conductors | THHN |
| Voltage | 600 V |
| Overall Length | 250 ft |
| Packaging | Coil |
| Cable Jacket Profile Type | Standard |
| Jacket Color | Silver |
| Jacket Material | Aluminum |
| Number of Conductors | 2 |
| Conductor Size | 12 AWG |
| Conductor Material | Copper |
| Conductor Insulation Color | Blue; White |
| Conductor Insulation Material | PVC |
| Conductor Design | Solid |
| Number of Ground Conductors | 1 |
| Grounding Conductor Size | 12 AWG |
| Grounding Conductor Material | Copper |
| Grounding Conductor Insulation Color | Green |
| Number of Neutrals | 0 |
| Shielding | Shielded |
| Shielding Material | Aluminum |
| Nominal Outside Diameter | 0.48 in |
| Temperature Rating - Maximum Dry | 194 °F |
| Hazardous Location Specification | Class I, Div 2, Group A, B, C, D; Class II, Div 2, Group E, F, G; Class III, Div 1 |
| Standards | UL Listed |
| Country of Origin | United States |
