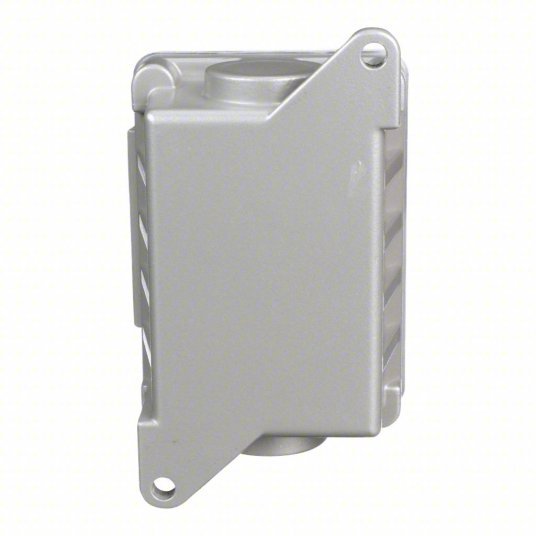

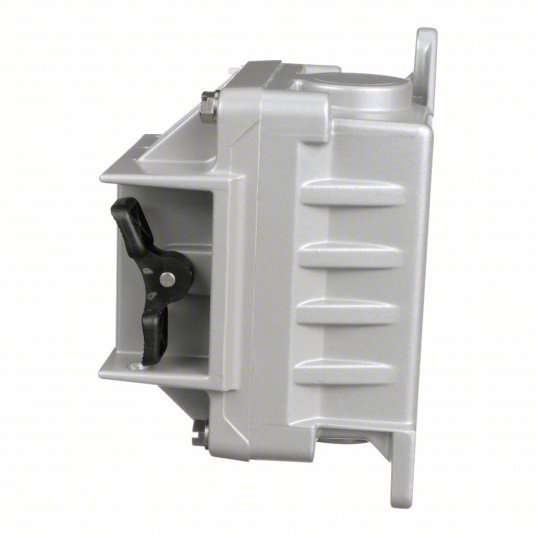

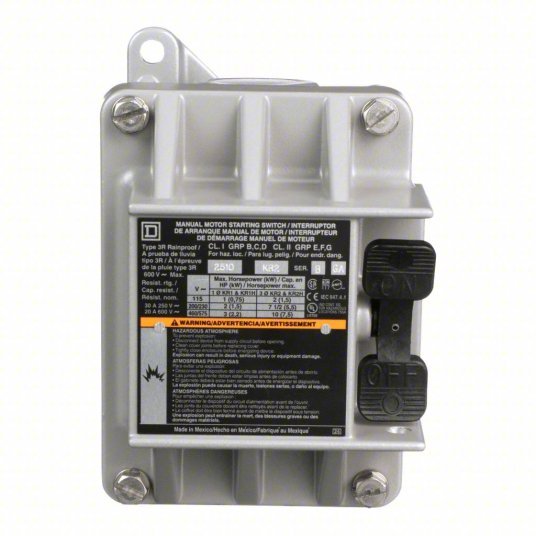

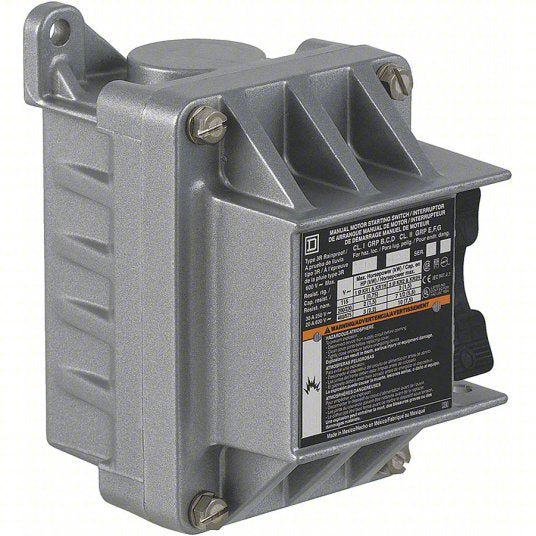

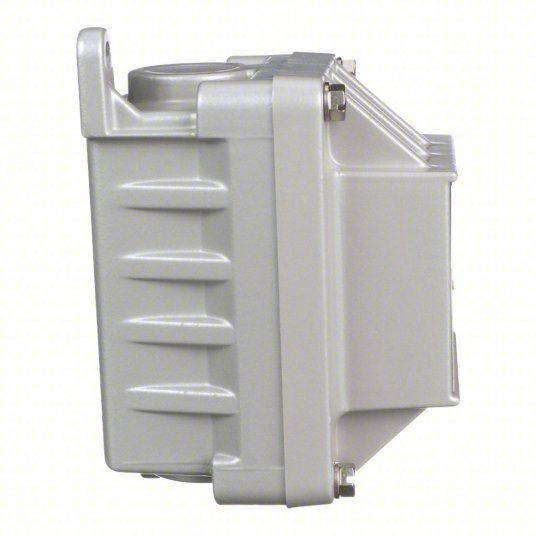

Square D 2510KR2 Manual Motor Switch 3 Poles, 20 A, 0.75 in Hub Dia, Dead End
Original price
$572.62
-
Original price
$572.62
Original price
$572.62
$572.62
-
$572.62
Current price
$572.62
Manual Motor Switch, Current AC 20 A, Hazardous Location Specification Class I, Div 1, Group B, C, D, Class II, Div 1, Group E, F, G, Horsepower @ Single Phase - 120V AC 2 hp, Horsepower @ Single Phase - 240V AC 7 1/2 hp, Horsepower @ Three Phase - 240V AC 7 1/2 hp, Horsepower @ Three Phase - 480V AC 10 hp, Horsepower @ Three Phase - 600V AC 10 hp, Includes Pilot Light No, Number of Poles 3, Operator Toggle Switch, Phase Three, Starter Style NEMA, Terminal Connection Type Screw Terminals
| Operator | Toggle Switch |
| Enclosure NEMA Rating | 3R, 7, 9 |
| Amps AC | 30 A |
| Item | Manual Motor Switch |
| Starter Type | NEMA Style |
| Number of Poles | 3 |
| HP @ 3 Phase - 480V | 10 hp |
| Max. Voltage | 600 V AC |
| HP @ 115VDC | 2 hp |
| HP @ 1 Phase - 120V | 2 hp |
| HP @ 3 Phase - 240V | 7 1/2 hp |
| Pilot Light | No |
| Description/Special Features | Hazardous Location |
| Standards | Class I, Group B, C, D; Class II, Group E, F, G, CSA LR26817 Class 3218 04, UL Listed E58760 CCN NPXZ |
| HP @ 3 Phase - 575V | 10 hp |
| HP @ 3 Phase - 460-575V | 10 hp |
| Phase Loss Sensitivity | No |
| HP @ 1 Phase - 230V | 7 1/2 hp |
| HP @ 230VDC | 1 1/2 hp |
| Electrical Connection | screw clamp terminals |
| Poles Description | 3P |
| Line Rated Current | 20 A |
| Nema Degree Of Protection | NEMA 3R/7/9 Cast Aluminium standard size |
| [Ue] Rated Operational Voltage | 600 V AC || 230 V DC |
| Product Certifications | UL listed file E58760 CCN NPXZ || CSA LR26817 class 3218 04 |
| Control Type | toggle |
| Maximum Horse Power Rating | 2 hp 115 V AC || 1 hp 90 V DC || 2 hp 115 V DC || 1.5 hp 230 V DC || 7.5 hp 230 V AC || 10 hp 460 V AC || 10 hp 575 V AC |
| Phase | Three |
| Local Signalling | no indicator |
| Product Or Component Type | Single Unit Manual Switch |
| Awg Gauge | AWG 14 to AWG 10 copper |
| Motor Starter Type | non reversing |
| Cable Entry | 0.75 NPT (bottom) |
| Starter Style | NEMA |
| NEMA Enclosure Rating | 3R, 7, 9 |
| Hub Type | Dead End |
| Series | Type K, Class 2510 |
| Horsepower @ Single Phase - 120V AC | 2 hp |
| Terminal Connection Type | Screw Terminals |
| Mounting Style | Surface |
| Hazardous Location Specification | Class I, Div 1, Group B, C, D, Class II, Div 1, Group E, F, G |
| Horsepower @ 230V DC | 1 1/2 hp |
| Includes Pilot Light | No |
| Horsepower @ Three Phase - 480V AC | 10 hp |
| Horsepower @ 115V DC | 2 hp |
| Current AC | 20 A |
| Maximum Voltage Rating | 230V DC, 600V AC |
| Horsepower @ Single Phase - 240V AC | 7 1/2 hp |
| Horsepower @ Three Phase - 240V AC | 7 1/2 hp |
| Horsepower @ Three Phase - 600V AC | 10 hp |
