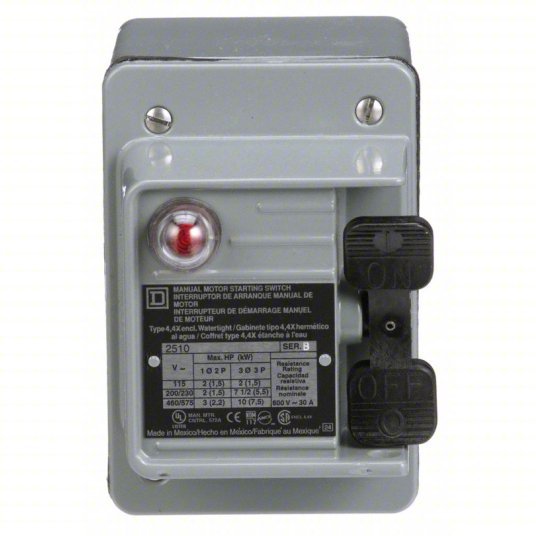

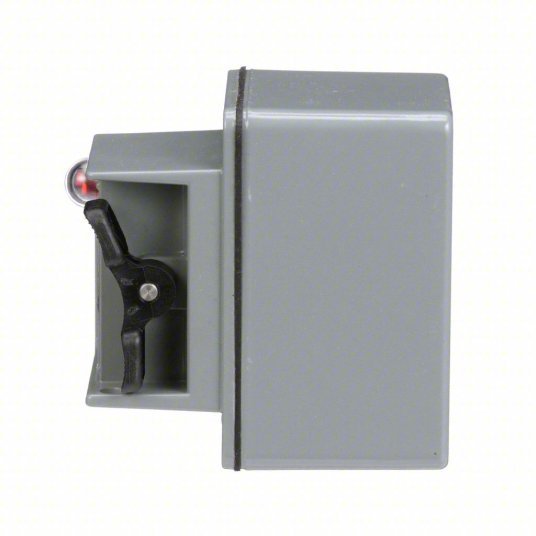

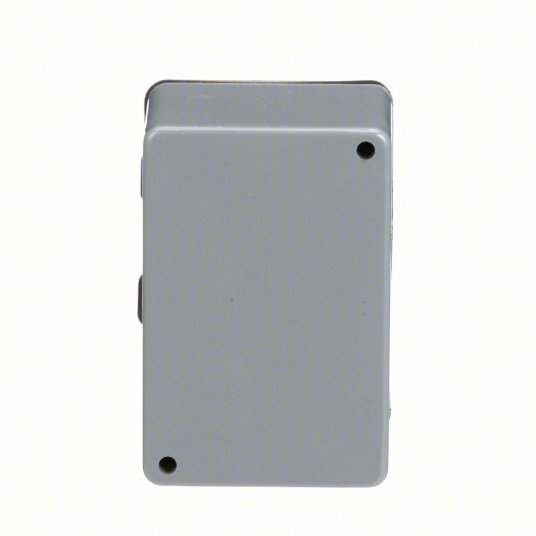

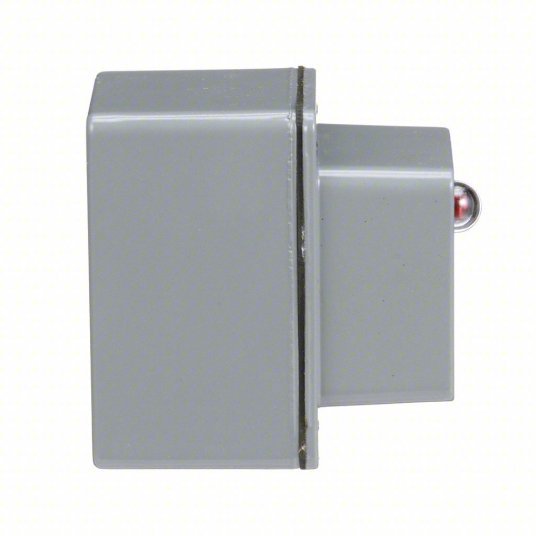

Square D 2510KW1A Manual Motor Switch 2 Poles, 30 A, 4 NEMA Rating, Pilot Light: Red Light (115V AC)
Original price
$570.29
-
Original price
$570.29
Original price
$570.29
$570.29
-
$570.29
Current price
$570.29
Manual Motor Switch, Current AC 30 A, Hazardous Location Specification Not Applicable, Horsepower @ Single Phase - 120V AC 2 hp, Horsepower @ Single Phase - 240V AC 2 hp, Horsepower @ Three Phase - 240V AC 2 hp, Horsepower @ Three Phase - 480V AC 3 hp, Horsepower @ Three Phase - 600V AC 3 hp, Includes Pilot Light Yes, Number of Poles 2, Operator Toggle Switch, Phase Single, Starter Style NEMA, Terminal Connection Type Screw Terminals, Hub Diameter 0.75 in, Hub Type Dead End
| Operator | Toggle Switch |
| Type | K |
| Enclosure NEMA Rating | 4 |
| Amps AC | 30 A |
| Item | Manual Motor Switch |
| Starter Type | NEMA Style |
| Number of Poles | 2 |
| HP @ 3 Phase - 480V | 3 hp |
| Max. Voltage | 600 V AC |
| HP @ 115VDC | 2 hp |
| HP @ 3 Phase - 240V | 2 hp |
| HP @ 1 Phase - 120V | 2 hp |
| Pilot Light | Yes |
| Description/Special Features | Pilot Light |
| HP @ 1 Phase - 230V | 2 hp |
| HP @ 230VDC | 1 1/2 hp |
| HP @ 3 Phase - 460-575V | 3 hp |
| Phase Loss Sensitivity | No |
| Standards | CSA LR25490 Class 3211 05, UL Listed E42243 CCN NLRV |
| HP @ 3 Phase - 575V | 3 hp |
| Cable Entry | 0.75 NPT (bottom) |
| Control Type | toggle |
| Phase | Single |
| Electrical Connection | screw clamp terminals |
| Product Certifications | UL listed file E42243 CCN NLRV || CSA LR25490 class 3211 05 |
| Awg Gauge | AWG 14 to AWG 10 copper |
| Local Signalling | red indicator, 115 V |
| Line Rated Current | 30 A |
| Maximum Horse Power Rating | 2 hp 115 V AC || 2 hp 230 V AC || 3 hp 460 V AC || 3 hp 575 V AC || 1 hp 90 V DC || 2 hp 115 V DC || 1.5 hp 230 V DC |
| Poles Description | 2P |
| Product Or Component Type | Single Unit Manual Switch |
| [Ue] Rated Operational Voltage | 600 V AC || 230 V DC |
| Nema Degree Of Protection | NEMA 4 die cast zinc alloy standard size |
| Motor Starter Type | non reversing |
| Horsepower @ Three Phase - 240V AC | 2 hp |
| Series | Type K, Class 2510 |
| Horsepower @ 230V DC | 1 1/2 hp |
| Horsepower @ Three Phase - 600V AC | 3 hp |
| Terminal Connection Type | Screw Terminals |
| Horsepower @ Three Phase - 480V AC | 3 hp |
| Horsepower @ Single Phase - 120V AC | 2 hp |
| NEMA Enclosure Rating | 4 |
| Maximum Voltage Rating | 230V DC, 600V AC |
| Hazardous Location Specification | Not Applicable |
| Mounting Style | Surface |
| Horsepower @ Single Phase - 240V AC | 2 hp |
| Starter Style | NEMA |
| Includes Pilot Light | Yes |
| Current AC | 30 A |
| Hub Type | Dead End |
| Horsepower @ 115V DC | 2 hp |
| Horsepower Rating | 2 hp 115 V AC; 2 hp 230 V AC; 3 hp 460 V AC; 3 hp 575 V AC; 1 hp 90 V DC; 2 hp 115 V DC; 1.5 hp 230 V DC |
| Certifications | UL listed file E42243 CCN NLRV; CSA LR25490 class 3211 05 |
| Number Of Phases | 1 phase |
