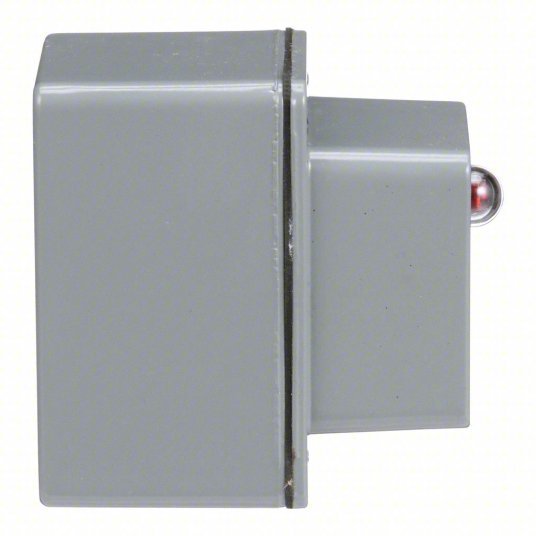

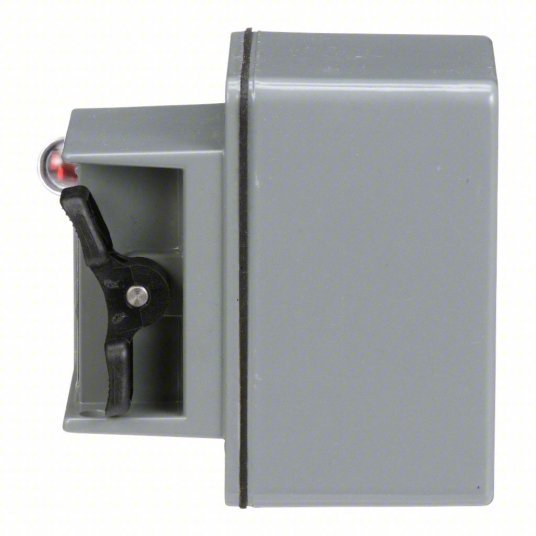

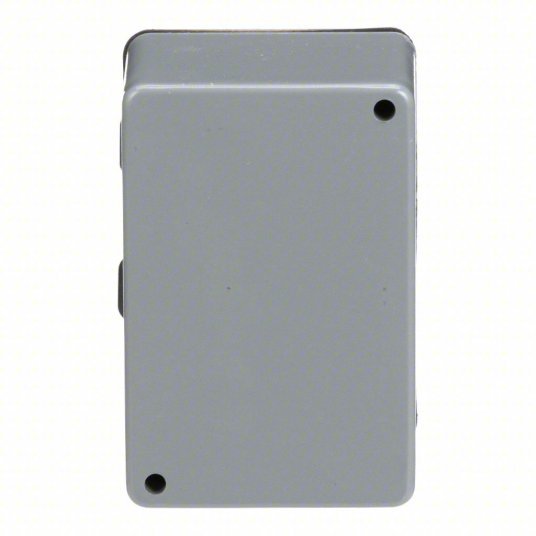

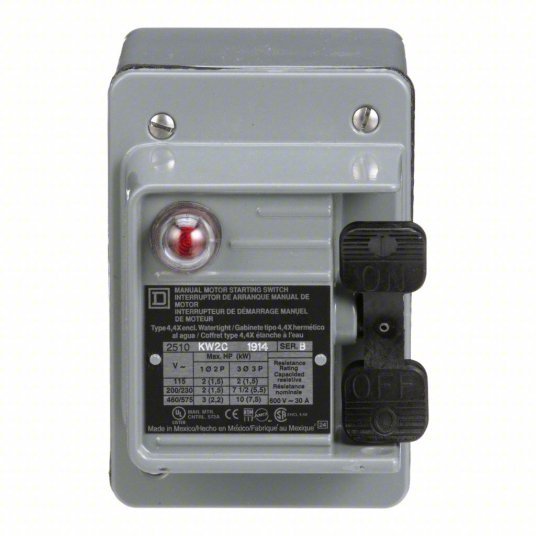

Square D 2510KW2C Manual Motor Switch 3 Poles, 30 A, 4 NEMA Rating, Pilot Light: Red Light (440-600V AC)
Square D 2510KW2C Manual Motor Switch 3 Poles, 30 A, 4 NEMA Rating, Pilot Light: Red Light (440-600V AC)
Square D 2510KW2C Manual Motor Switch 3 Poles, 30 A, 4 NEMA Rating, Pilot Light: Red Light (440-600V AC)
Square D 2510KW2C Manual Motor Switch 3 Poles, 30 A, 4 NEMA Rating, Pilot Light: Red Light (440-600V AC)
Square D 2510KW2C Manual Motor Switch 3 Poles, 30 A, 4 NEMA Rating, Pilot Light: Red Light (440-600V AC)
Square D 2510KW2C Manual Motor Switch 3 Poles, 30 A, 4 NEMA Rating, Pilot Light: Red Light (440-600V AC)
Square D 2510KW2C Manual Motor Switch 3 Poles, 30 A, 4 NEMA Rating, Pilot Light: Red Light (440-600V AC)
Square D 2510KW2C Manual Motor Switch 3 Poles, 30 A, 4 NEMA Rating, Pilot Light: Red Light (440-600V AC)

Square D 2510KW2C Manual Motor Switch 3 Poles, 30 A, 4 NEMA Rating, Pilot Light: Red Light (440-600V AC)

$665.32 - $665.32
$665.32
$665.32 - $665.32
$665.32
Manual Motor Switch, Current AC 30 A, Hazardous Location Specification Not Applicable, Horsepower @ Single Phase - 120V AC 2 hp, Horsepower @ Single Phase - 240V AC 7 1/2 hp, Horsepower @ Three Phase - 240V AC 7 1/2 hp, Horsepower @ Three Phase - 480V AC 10 hp, Horsepower @ Three Phase - 600V AC 10 hp, Includes Pilot Light Yes, Number of Poles 3, Number of Required Thermals 3, Operator Toggle Switch, Phase Three, Starter Style NEMA, Terminal Connection Type Screw Terminals, Hub Diameter 0.75 in
Operator Toggle Switch
Enclosure NEMA Rating 4
Number of Required Thermals 3
Amps AC 30 A
Item Manual Motor Switch
Starter Type NEMA Style
Number of Poles 3
Max. Voltage 600 V AC
HP @ 3 Phase - 480V 10 hp
HP @ 3 Phase - 240V 7 1/2 hp
HP @ 115VDC 2 hp
HP @ 1 Phase - 120V 2 hp
Pilot Light Yes
HP @ 3 Phase - 460-575V 10 hp
HP @ 230VDC 1 1/2 hp
HP @ 1 Phase - 230V 7 1/2 hp
Standards CSA LR25490 Class 3211 05, UL Listed E42243 CCN NLRV
Description/Special Features Pilot Light
Phase Loss Sensitivity No
HP @ 3 Phase - 575V 10 hp
Nema Degree Of Protection NEMA 4 die cast zinc alloy standard size
Poles Description 3P
Line Rated Current 30 A
Maximum Horse Power Rating 2 hp 115 V AC || 1 hp 90 V DC || 2 hp 115 V DC || 1.5 hp 230 V DC || 7.5 hp 230 V AC || 10 hp 460 V AC || 10 hp 575 V AC
Motor Starter Type non reversing
[Ue] Rated Operational Voltage 600 V AC || 230 V DC
Product Or Component Type Single Unit Manual Switch
Control Type toggle
Product Certifications UL listed file E42243 CCN NLRV || CSA LR25490 class 3211 05
Phase Three
Cable Entry 0.75 NPT (bottom)
Electrical Connection screw clamp terminals
Local Signalling red indicator, 440 to 600 V
Awg Gauge AWG 14 to AWG 10 copper
Current AC 30 A
Horsepower @ Single Phase - 120V AC 2 hp
Mounting Style Surface
Horsepower @ 230V DC 1 1/2 hp
Series Type K, Class 2510
Hub Type Dead End
Terminal Connection Type Screw Terminals
Horsepower @ Single Phase - 240V AC 7 1/2 hp
Horsepower @ Three Phase - 480V AC 10 hp
Horsepower @ Three Phase - 600V AC 10 hp
Horsepower @ Three Phase - 240V AC 7 1/2 hp
Horsepower @ 115V DC 2 hp
Maximum Voltage Rating 230V DC, 600V AC
Starter Style NEMA
Includes Pilot Light Yes
NEMA Enclosure Rating 4
