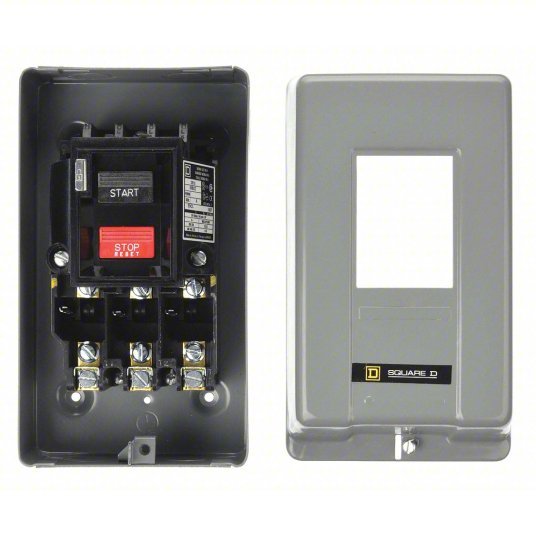

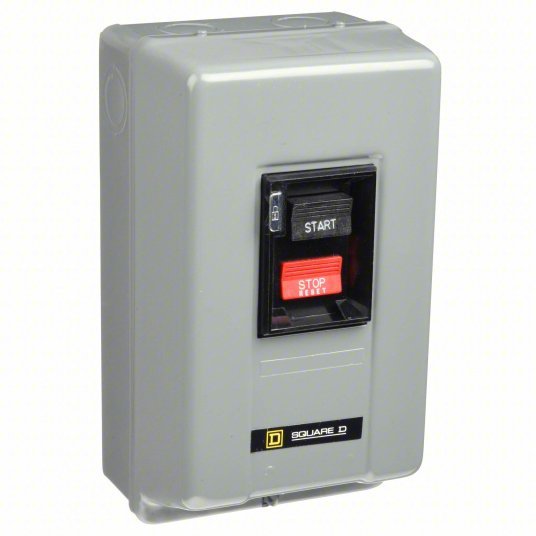

Square D 2510MBG2 Manual Motor Starter Non-Reversing, 3 Poles, 18 A, NEMA Size M-0, Thermal Protection, SQR1
Original price
$419.10
-
Original price
$419.10
Original price
$419.10
$419.10
-
$419.10
Current price
$419.10
Manual Motor Starter, NEMA Size M-0, Maximum Voltage Rating 600V AC, Number of Poles 3, Operator Push Button, Phase Three, Current AC 18 A, Horsepower @ Three Phase - 240V AC 5 hp, Horsepower @ Three Phase - 480V AC 5 hp, Series Class 2510 M Series, Horsepower @ Three Phase - 600V AC 5 hp, Maximum Overload Relay Current Setting Not Applicable, Minimum Overload Relay Current Setting Not Applicable, Mounting Style Surface, NEMA Enclosure Rating 1, Number of Required Thermals 3
| Operator | Push Button |
| Enclosure NEMA Rating | 1 |
| Number of Required Thermals | 3 |
| Amps AC | 18 A |
| Item | Manual Motor Starter |
| Number of Poles | 3 |
| HP @ 3 Phase - 480V | 5 hp |
| Max. Voltage | 600V AC |
| HP @ 3 Phase - 240V | 3 hp |
| Pilot Light | No |
| HP @ 3 Phase - 460-575V | 5 hp |
| HP @ 3 Phase - 575V | 5 hp |
| Description/Special Features | Reliable Overload Protection |
| Standards | CSA LR60905, E42243 CCN NLRV, UL Listed |
| Thermal Unit Code | M2 |
| Phase Loss Sensitivity | No |
| Product Or Component Type | Manual Starter |
| Nema Degree Of Protection | NEMA 1 painted sheet steel |
| Thermal Overload Type | melting alloy |
| Awg Gauge | AWG 14...AWG 8 copper |
| Product Certifications | CSA LR60905 class 3211 05 || UL listed file E42243 CCN NLRV |
| [Ue] Rated Operational Voltage | 600 V AC |
| Electrical Connection | pressure wire clamp |
| Maximum Horse Power Rating | 3-3 hp 200...230 V AC, 3 phase || 5-5 hp 380...575 V AC, 3 phase |
| Auxiliary Contact Composition | without |
| Number Of Thermal Units Required | 3 |
| Control Type | push-button |
| Local Signalling | no indicator |
| Motor Starter Type | non reversing |
| Poles Description | 3P |
| Includes Pilot Light | No |
| Series | Class 2510 M Series |
| Maximum Voltage Rating | 600V AC |
| Terminal Connection Type | Screw Clamp Terminals |
| Starter Style | NEMA |
| Horsepower @ Three Phase - 480V AC | 5 hp |
| NEMA Enclosure Rating | 1 |
| Minimum Overload Relay Current Setting | Not Applicable |
| Overload Protection Type | Thermal |
| Horsepower @ Three Phase - 240V AC | 5 hp |
| Current AC | 18 A |
| IP Rating | Not Applicable |
| Status Indicator | No Indicator |
| Phase | Three |
| Mounting Style | Surface |
| Horsepower @ Three Phase - 600V AC | 5 hp |
