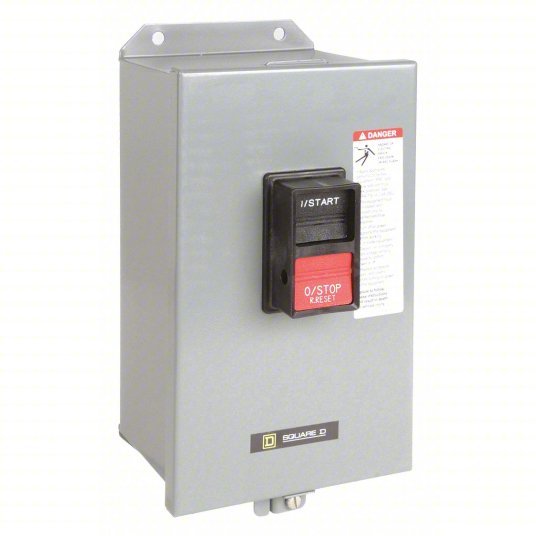

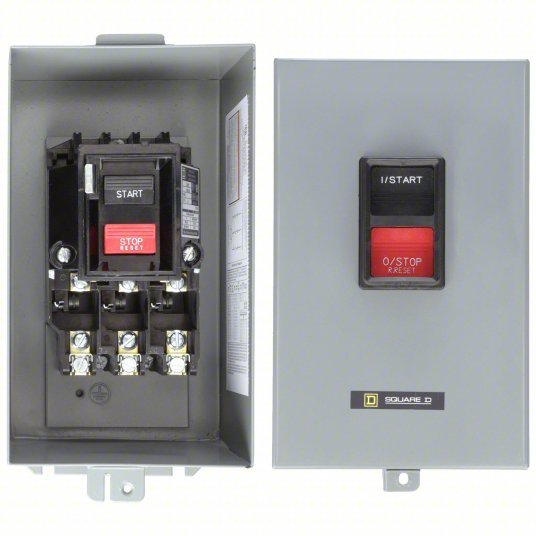

Square D 2510MCA3 Manual Motor Starter Non-Reversing, 3 Poles, 27 A, NEMA Size M-1, Thermal Protection
Original price
$620.49
-
Original price
$620.49
Original price
$620.49
$620.49
-
$620.49
Current price
$620.49
Manual Motor Starter, NEMA Size M-1, Maximum Voltage Rating 600V AC, Number of Poles 3, Operator Push Button, Phase Three, Current AC 27 A, Horsepower @ Three Phase - 240V AC 7 1/2 hp, Horsepower @ Three Phase - 480V AC 10 hp, Series Class 2510 M Series, Horsepower @ Three Phase - 600V AC 10 hp, Maximum Overload Relay Current Setting Not Applicable, Minimum Overload Relay Current Setting Not Applicable, Mounting Style Surface, NEMA Enclosure Rating 12, Number of Required Thermals 3
| Operator | Push Button |
| Type | M |
| Enclosure NEMA Rating | 12 |
| Number of Required Thermals | 3 |
| Amps AC | 27 A |
| Item | Manual Motor Starter |
| Number of Poles | 3 |
| HP @ 3 Phase - 480V | 10 hp |
| Max. Voltage | 600V AC |
| HP @ 3 Phase - 240V | 7 1/2 hp |
| Pilot Light | No |
| HP @ 3 Phase - 575V | 10 hp |
| Thermal Unit Code | N2 |
| HP @ 3 Phase - 460-575V | 10 hp |
| Description/Special Features | Class 10 Ambient-Compensated Thermal Overload Relay |
| Standards | CSA LR60905, E42243 CCN NLRV, UL Listed |
| Phase Loss Sensitivity | No |
| Product Or Component Type | Manual Starter |
| Motor Starter Type | non reversing |
| Maximum Horse Power Rating | 7.5-7.5 hp 200...230 V AC, 3 phase || 10-10 hp 380...575 V AC, 3 phase |
| Auxiliary Contact Composition | without |
| Electrical Connection | pressure wire clamp |
| Thermal Overload Type | melting alloy |
| Product Certifications | UL listed file E42243 CCN NLRV || CSA LR60905 class 3211 05 |
| Local Signalling | no indicator |
| Awg Gauge | AWG 14...AWG 8 copper |
| Poles Description | 3P |
| Control Type | push-button |
| Nema Degree Of Protection | NEMA 12 painted sheet steel |
| [Ue] Rated Operational Voltage | 600 V AC |
| Number Of Thermal Units Required | 3 |
| Phase | Three |
| Horsepower @ Three Phase - 600V AC | 10 hp |
| Minimum Overload Relay Current Setting | Not Applicable |
| IP Rating | Not Applicable |
| Horsepower @ Three Phase - 240V AC | 7 1/2 hp |
| Includes Pilot Light | No |
| Maximum Voltage Rating | 600V AC |
| Mounting Style | Surface |
| Status Indicator | No Indicator |
| Maximum Overload Relay Current Setting | Not Applicable |
| Current AC | 27 A |
| Terminal Connection Type | Screw Clamp Terminals |
| Overload Protection Type | Thermal |
| Starter Style | NEMA |
| NEMA Enclosure Rating | 12 |
| Series | Class 2510 M Series |
| Horsepower @ Three Phase - 480V AC | 10 hp |
| Certifications | UL listed file E42243 CCN NLRV; CSA LR60905 class 3211 05 |
| Wire Gauge | AWG 14 to AWG 8 copper |
| Horsepower Rating | 7.5 hp 200 to 230 V AC, 3 phase; 10 hp 380 to 575 V AC, 3 phase |
