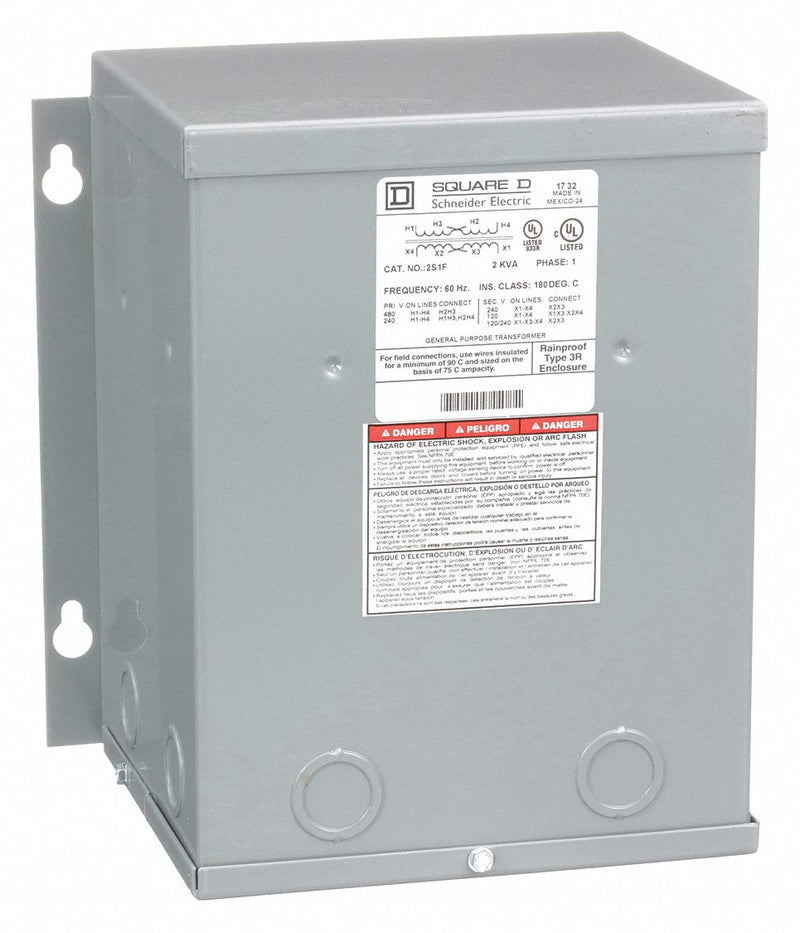

Square D 2S1F Dry Type Power Distribution Transformer, 240V AC/480V AC, 120V AC/240V AC, Wall, Aluminum

Square D 2S1F Dry Type Power Distribution Transformer, 240V AC/480V AC, 120V AC/240V AC, Wall, Aluminum

$1,479.24 - $1,479.24
$1,479.24
$1,479.24 - $1,479.24
$1,479.24

Dry Type Power Distribution Transformer, Input Voltage - Transformer 240V AC, 480V AC, Output Voltage - Transformer 120V AC, 240V AC, VA Rating - Transformer 2 kVA, Mounting - Transformer Wall, Outdoor Rated - Transformer Yes, Voltage Function - Transformer Step Down, Winding Material - Transformer Aluminum, Hz - Electrical 60 Hz, Temp. Rise 115 Degrees C, Enclosure Rating NEMA 3R, IP Rating IP54

Overall Height 9.56 in
Overall Width 8.68 in
Overall Depth 6.56 in
Manufacturers Warranty Length 1 yr
Height 9.6 in
Depth 6.6 in
Width 8.7 in
Knockout Size - Transformer 1/2 in, 3/4 in
Knockout Size 1/2 in, 3/4 in
CAD Available Yes
Input Voltage - Transformer 240V AC, 480V AC
Output Voltage 120V AC, 240V AC
Power Rating 2 kVA
Phase Single
Mounting - Transformer Wall
Hz - Electrical 60 Hz
NEMA Enclosure Rating 3R
IP Rating IP54
Outdoor Rated - Transformer Yes
Winding Material Aluminum
Color Gray
Temperature Rise 115 Degrees C
Enclosure Material Steel
Temp. Rise 115 Degrees C
Output Voltage - Transformer 120V AC, 240V AC
Phase - Electrical Single
VA Rating - Transformer 2 kVA
Voltage Function - Transformer Step Down
Standards CSA Certified, cULus, REACH Regulation, RoHS, UL Listed
Winding Material - Transformer Aluminum
Enclosure Finish Painted
Enclosure Rating NEMA 3R
Insulation Max. Temp. 180 °C
Sound Level 37 dB
Includes Knockouts Knockouts Included
Frequency 60 Hz
Input Voltage 240V AC, 480V AC
Voltage Function Step Down
Country of Origin South Korea (subject to change)
