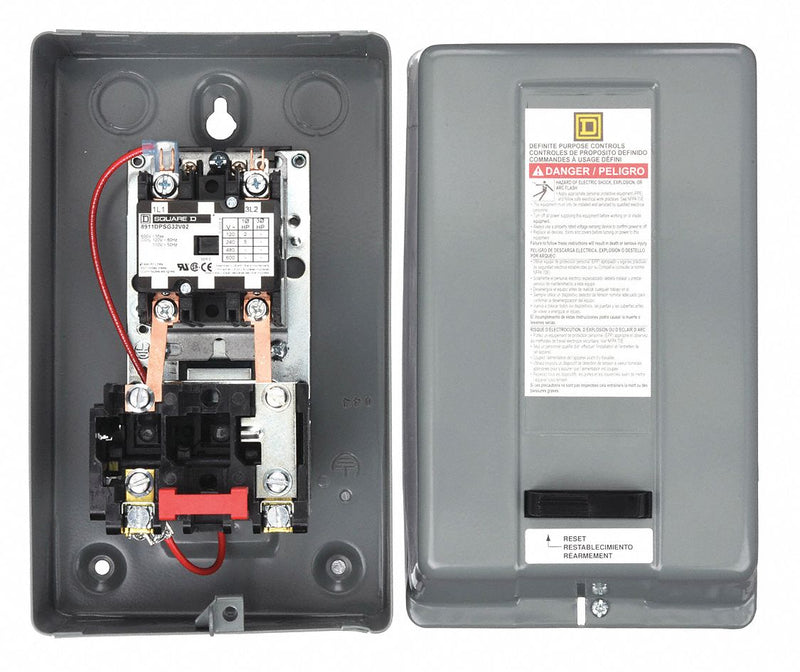

Square D 8911DPSG32V02 Definite Purpose Magnetic Motor Starter, Non-Reversing, 2 Poles, 30 A, 120V AC Coil

Square D 8911DPSG32V02 Definite Purpose Magnetic Motor Starter, Non-Reversing, 2 Poles, 30 A, 120V AC Coil

UPC: 785901002826 | Harmonization / Schedule B : 8536.49.0055

Country of Origin: China | Shipping Weight: 5.55 lbs

$526.77 - $526.77
$526.77
$526.77 - $526.77
$526.77

Definite Purpose Magnetic Motor Starter, Series Class 8911 Type DP, Coil Voltage 120V AC, Maximum Voltage Rating 600V AC, Horsepower @ Single Phase - 240V AC 5 hp, Horsepower @ Single Phase - 120V AC 2 hp, Current AC 30 A, Number of Poles 2, NEMA Enclosure Rating 1, Reversing Capability Non-Reversing, Phase Single, Overload Protection Type Melting Alloy, Locked Rotor Load 120 A @ 575V AC, 150 A @ 460V AC, 180 A @ 230V AC, Mechanical Operating Durability 500,000, Frequency 50/60 Hz

Width 6.0 in
Height 10.0 in
Depth 5.56 in
Mounting Hole Distance - Width 4.13 in
Overall Width 6 in
Mounting Hole Distance - Height 8.13 in
Overall Height 10 in
Item Definite Purpose Magnetic Motor Starter
Coil Volts 120V AC
Country of Origin China
