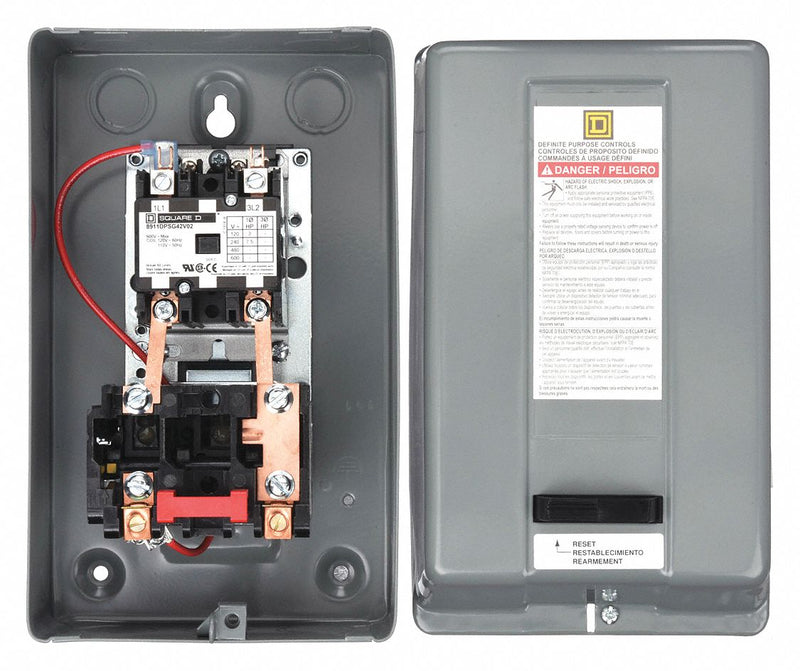

Square D 8911DPSG42V02 Definite Purpose Magnetic Motor Starter, Non-Reversing, 2 Poles, 40 A, 120V AC Coil

Square D 8911DPSG42V02 Definite Purpose Magnetic Motor Starter, Non-Reversing, 2 Poles, 40 A, 120V AC Coil

UPC: 785901001515 | Harmonization / Schedule B : 8536.49.0055

Country of Origin: China | Shipping Weight: 5.55 lbs

$581.46 - $581.46
$581.46
$581.46 - $581.46
$581.46

Definite Purpose Magnetic Motor Starter, Series Class 8911 Type DP, Coil Voltage 120V AC, Maximum Voltage Rating 600V AC, Horsepower @ Single Phase - 240V AC 7 1/2 hp, Horsepower @ Single Phase - 120V AC 3 hp, Current AC 40 A, Number of Poles 2, NEMA Enclosure Rating 1, Reversing Capability Non-Reversing, Phase Single, Overload Protection Type Melting Alloy, Locked Rotor Load 160 A @ 575V AC, 200 A @ 460V AC, 240 A @ 230V AC, Mechanical Operating Durability 500,000, Frequency 50/60 Hz

Depth 5.56 in
Width 6.0 in
Height 10.0 in
Mounting Hole Distance - Height 8.13 in
Overall Height 10 in
Overall Width 6 in
Mounting Hole Distance - Width 4.13 in
Item Definite Purpose Magnetic Motor Starter
Coil Volts 120V AC
Country of Origin China
