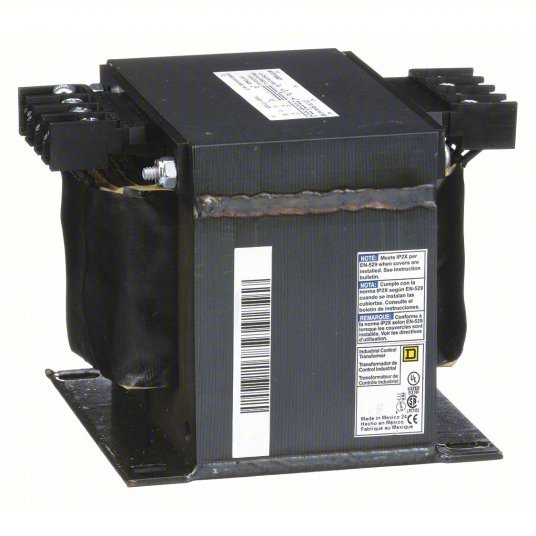

Square D 9070T1000D1 Control Transformer 240V AC/480V AC, 120V AC, Foot, 1 kVA VA Rating

Square D 9070T1000D1 Control Transformer 240V AC/480V AC, 120V AC, Foot, 1 kVA VA Rating

$790.51 - $790.51
$790.51
$790.51 - $790.51
$790.51
Control Transformer, Input Voltage - Transformer 240V AC, 480V AC, Output Voltage - Transformer 120V AC, VA Rating - Transformer 1 kVA, Protective Device None, Enclosure Style - Transformer Open, Mounting - Transformer Foot, Phase - Electrical 1, Hz - Electrical 50 Hz, 60 Hz, Temp. Rise 115 Degrees C, Enclosure Finish No Finish
Input Voltage - Transformer 240/480V AC
Output Voltage - Transformer 120V AC
VA Rating - Transformer 1 kVA
Phase - Electrical 1
Mounting - Transformer Foot
Hz - Electrical 50 Hz, 60 Hz
Enclosure Rating Not Rated
Temp. Rise 115 °C
Fused No
Enclosure Style - Transformer Open
Standards CE Marked, CSA Certified, NOM Certified, UL Listed
Enclosure Finish No Finish
Protective Device None
Green Environmental Attribute Mercury Free; Pvc Free
Material Copper: winding
Insulation Max. Temp. 180°C
Winding Material - Transformer Copper
Enclosure Type Open
Primary Connection Screw clamp terminals
Secondary Connection Screw clamp terminals
Certifications UL listed file E61239; CSA file LR37055 guide 184-N-90
Insulation Temperature 356°F (180°C)
Fingersafe Cover Compatibility FSC2
Primary To Secondary Voltage 240 x 480 V 120 V; 230 x 460 V 115 V; 220 x 440 V 110 V
Power Rating 1000 VA UL; 1000 VA CSA; 1000 VA NOM; 630 VA CE
