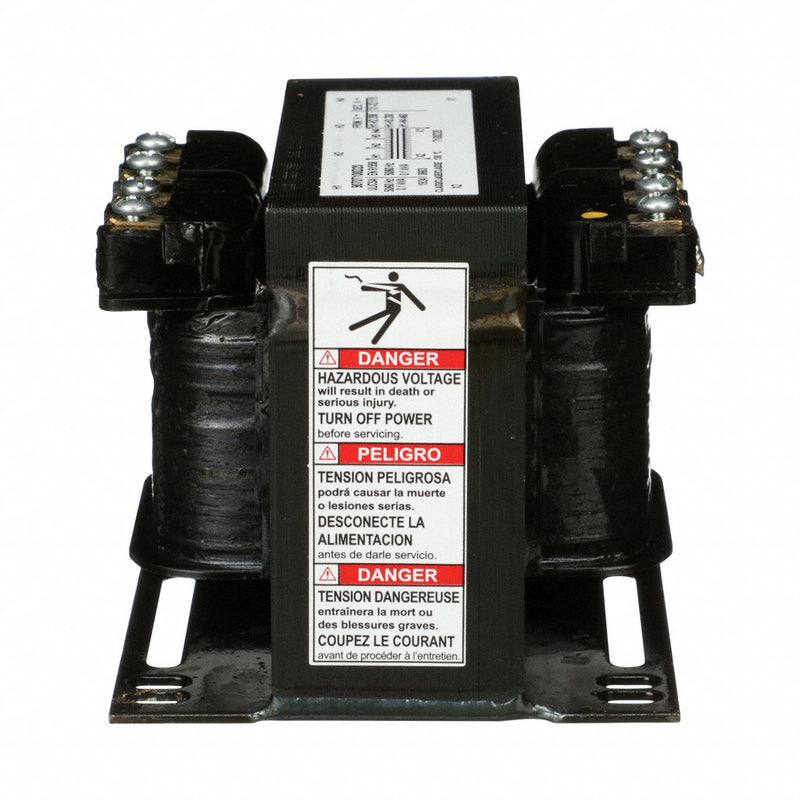

Square D 9070T100D20 Control Transformer, 100 VA, 208/240/480V AC to 120V AC, 1-Phase, Foot Mount
Original price
$339.91
-
Original price
$339.91
Original price
$339.91
$339.91
-
$339.91
Current price
$339.91
Control Transformer, Input Voltage - Transformer 208V AC, 240V AC, 480V AC, Output Voltage - Transformer 120V AC, VA Rating - Transformer 100 VA, Protective Device None, Enclosure Style - Transformer Open, Mounting - Transformer Foot, Phase - Electrical 1, Hz - Electrical 50 Hz, 60 Hz, Temp. Rise 55 Degrees C, Enclosure Finish Epoxy Resin Varnish
| Input Voltage - Transformer | 208/240/480V AC |
|---|---|
| Output Voltage | 120V AC |
| Power Rating | 100 VA |
| Phase | 1 |
| Mounting - Transformer | Foot |
| Hz - Electrical | 50/60 Hz |
| NEMA Enclosure Rating | Not Rated |
| Enclosure Style - Transformer | Open |
| Protective Device | None |
| Standards | CSA File LR37055 Guide 184-N-90, REACH, RoHS, UL Listed File E61239 |
| Fused | No |
| Enclosure Finish | Epoxy Resin Varnish |
| Green Environmental Attribute | Mercury Free; Pvc Free |
| Includes | 24 in Pre-Wired Primary and Secondary Leads |
| Secondary Connection | Screw clamp terminals |
| Primary Connection | Screw clamp terminals |
| Insulation Max. Temp. | 105 °C |
| Enclosure Type | Open |
| Winding Material - Transformer | Copper |
| Temperature Rise | 55°C |
| Country of Origin | United States |
