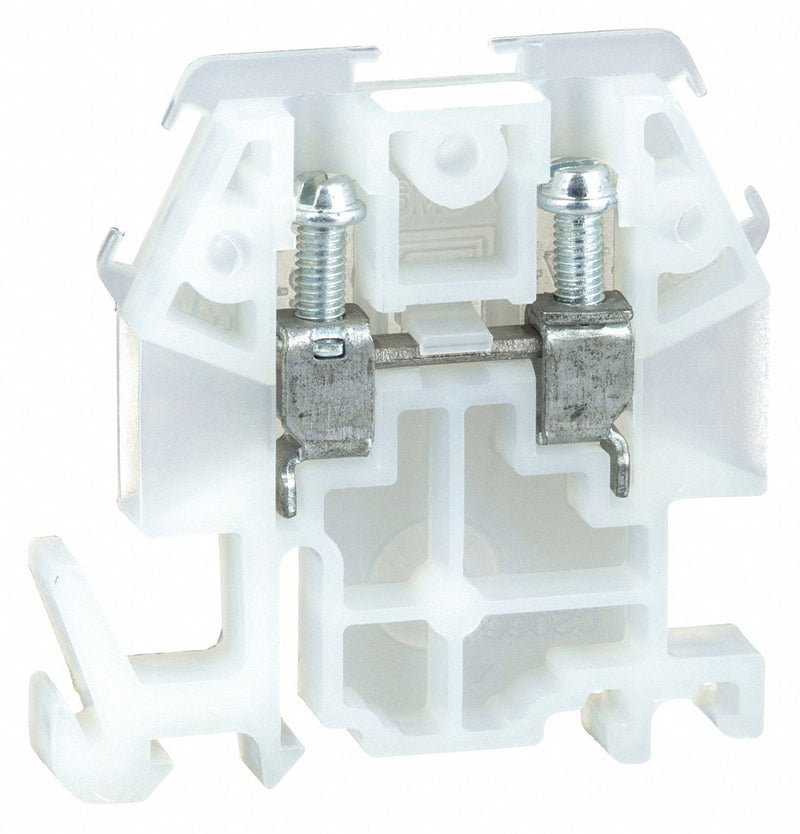

Square D 9080GM6 Terminal Block, DIN Rail Mounting Type, Screw Clamp Wire Termination, 2 Wire Terminals
UPC: 785901743927 | Harmonization / Schedule B : 8536.90.4000
Country of Origin: South Korea | Shipping Weight: 0.02 lbs
Original price
$3.51
-
Original price
$3.51
Original price
$3.51
$3.51
-
$3.51
Current price
$3.51
Terminal Block, Circuit Protection Type None, Connection Type Screw Clamp, Current 30 A, For Minimum Wire Size 22 AWG, For Maximum Wire Size 10 AWG, Housing Color Natural, Maximum Voltage 600 V, Mounting Type DIN Rail, Number of Poles 1, Number of Tiers 2, For Conductor Material Copper, For Conductor Type Solid, Stranded, For Fuse Diameter 3 1/32 in, Overall Depth 0.24 in, Overall Length 1.82 in, Overall Width 1.72 in, Standards CE, CSA Approved, RoHS Compliant, UL Component Recognized
| For Minimum Wire Size | 22 AWG |
|---|---|
| For Maximum Wire Size | 10 AWG |
| Channel Size | 35mm/GH |
| Overall Length | 1.82 in |
| For Channel Rail Size | 35 mm |
| Overall Depth | 0.24 in |
| For Fuse Diameter | 3 1/32 in |
| Overall Width | 1.72 in |
| Wire Rope Length | 1.82 in |
| Length | 1.82 in |
| MFR # | 9080GM6 |
| Zoro # | G2772104 |
| UPC # | 785901743927 |
| Country of Origin | Korea, Republic of |
| Terminal Block Type | Solderless Box Lug |
| Mounting Type | DIN |
| Connection Type | Screw Clamp |
| Number of Poles | 1 |
| Number of Tiers | 2 |
| Current | 30 A |
| Maximum Voltage | 600 V AC/DC |
| Circuit Protection Type | None |
| Termination Style | Screw |
| For Conductor Material | Copper |
| For Conductor Type | Solid, Stranded |
| Housing Color | Natural |
| Standards | CE, CSA Approved, RoHS Compliant, UL Component Recognized |
| Pieces per Foot | 51 |
| Block Material | Nylon |
| Temp. Range | -40 Degrees to 275 Degrees F |
| Number of Connections | 2 |
| Maximum Operating Temperature | 257 Degrees F |
| Includes | Adhesive Backed Strips, End Barrier, End Clamps, Marking Strip End Plug, Mounting Track, Vinyl Marking Strip |
| 6-Pole Jumper Compatibility | 5B367 |
| Housing Material | Nylon |
| Torque | 8 lb-in |
| Minimum Operating Temperature | -40 Degrees F |
| UL 94 Flammability Rating | V-2 |
| Terminal Material | Zinc Plated Steel |
| 2-Pole Jumper Compatibility | 5B368 |
| Compatible Manufacturer Model Number | 9080 GH230, 9080 GH31, GH10, GH11, GH136, GH220, GH236, GH336, GH60, GM6B, MH320, MH339, MH379, MHA10 |
| End Barrier Compatibility | 5B361 |
| RoHS Compliant | Yes |
| Electrical Connection | zinc plated steel box lugs |
| Localisation On Device | standard |
| Protection Type | fingersafe DIN 57470 |
| Number Of Terminal Blocks | 51 per foot |
| [Ue] Rated Operational Voltage | 600 V AC/DC |
| Ambient Air Temperature For Operation | -40-257°F |
| Country of Origin | South Korea (subject to change) |
