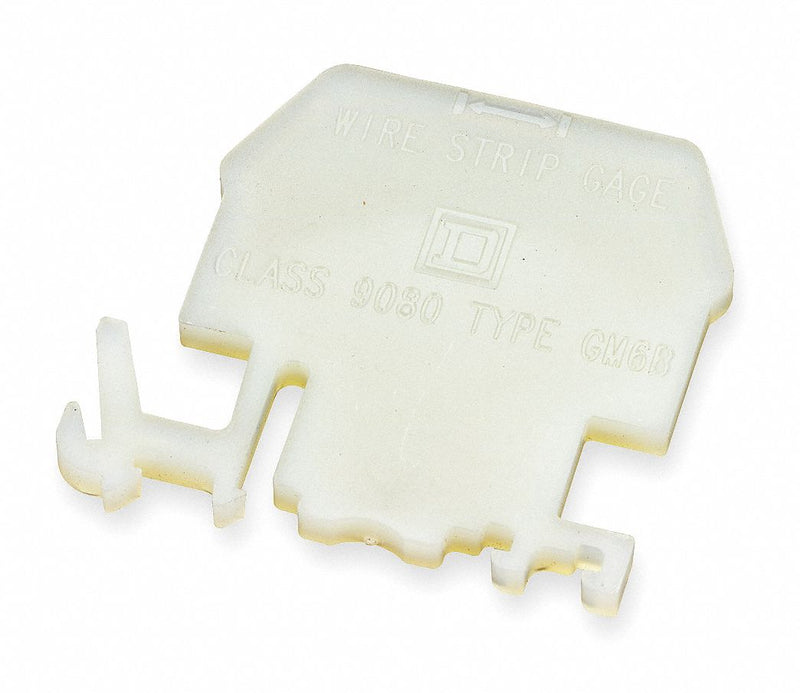

Square D 9080GM6B End Barrier, Clip-On Mount, Natural, Terminal Block PK10
UPC: 785901744023 | Harmonization / Schedule B : 8536.90.4000
Country of Origin: South Korea | Shipping Weight: 0.1 lbs
Original price
$19.98
-
Original price
$19.98
Original price
$19.98
$19.98
-
$19.98
Current price
$19.98
Linergy NEMA sectional terminal blocks are for terminating wire and are designed to NEMA standards. This end barrier is used to cover the open side of the 9080GM6 or 9080GR6 terminal block. An end barrier is required at the end of all assemblies of 9080GM6 or 9080GR6 block to meet the UL component recognition and CSA certification requirements. The nylon end barrier is molded in the natural color of nylon (off white).
| Height | 1.67 in |
|---|---|
| Overall Depth | 0.12 in |
| Overall Length | 2.3 in |
| Overall Width | 1.68 in |
| Thickness | 0.12 in |
| Wire Rope Length | 2.3 in |
| Length | 2.3 in |
| MFR # | 9080GM6B |
| Zoro # | G2328916 |
| UPC # | 785901744023 |
| Country of Origin | Korea, Republic of |
| Mounting Type | Track |
| Color | Natural |
| Standards | REACH |
| Material | Nylon |
| Maximum Operating Temperature | 257 Degrees F |
| RoHS Compliant | Yes |
| Minimum Operating Temperature | -40 Degrees F |
| Compatible with Product Type | Terminal Block |
| Compatible Manufacturer Model Number | 9080GM6, 9080GR6 |
| Ambient Air Temperature For Operation | -40-257°F |
| Compatible with Series | 9080G |
| Country of Origin | South Korea (subject to change) |
