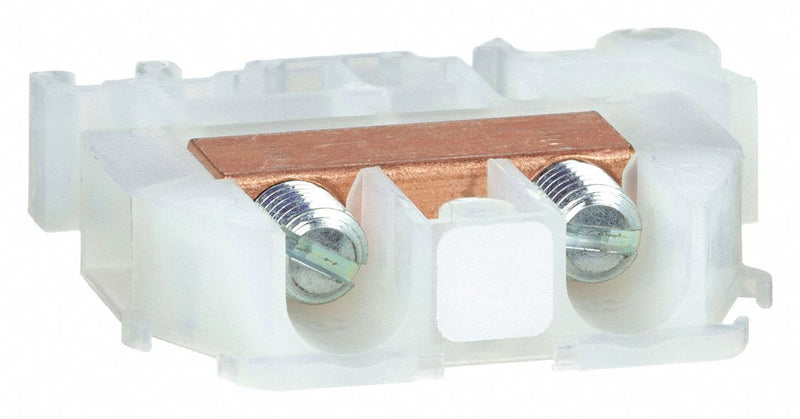

Square D 9080GR6 Terminal Block, DIN Rail Mounting Type, Screw Clamp Wire Termination, 2 Wire Terminals
UPC: 785901000716 | Harmonization / Schedule B : 8536.90.8585
Country of Origin: South Korea | Shipping Weight: 0.03 lbs
Original price
$4.13
-
Original price
$4.13
Original price
$4.13
$4.13
-
$4.13
Current price
$4.13
Linergy NEMA sectional terminal blocks are for terminating wires in a control panel and are designed to NEMA standards. This terminal block has a box lug connector for use with solid or stranded copper wires from #22 through #8 AWG. Each box lug terminal is approved for use with various wire combinations. Each lug accepts 1 #8 AWG, 1 # 10 AWG, 1 or 3 #12 AWG, 1 or 4 #14 AWG, 1 to 4 #16 AWG, 1 to 5 #18 AWG, 1 to 8 #20 AWG or 1 to 10 #22 AWG wires. The nylon block is molded in the natural color of nylon (off white). This block is UL component recognized and CSA certified for up to 60 ampere and up to 600 VAC or VDC.
| For Minimum Wire Size | 22 AWG |
|---|---|
| For Maximum Wire Size | 8 AWG |
| Channel Size | 35mm/GH |
| For Channel Rail Size | 35 mm |
| For Fuse Diameter | 3 1/32 in |
| Overall Length | 1.82 in |
| Overall Width | 1.72 in |
| Overall Depth | 0.35 in |
| Wire Rope Length | 1.82 in |
| Length | 1.82 in |
| MFR # | 9080GR6 |
| Zoro # | G0590231 |
| UPC # | 785901000716 |
| Country of Origin | Korea, Republic of |
| Terminal Block Type | Solderless Box Lug |
| Mounting Type | DIN |
| Connection Type | Screw Clamp |
| Number of Poles | 1 |
| Number of Tiers | 2 |
| Current | 60 A |
| Maximum Voltage | 600 V AC/DC |
| Circuit Protection Type | None |
| Termination Style | Screw |
| For Conductor Material | Copper |
| For Conductor Type | Solid, Stranded |
| Housing Color | Natural |
| Standards | CE, CSA Approved, RoHS Compliant, UL Component Recognized |
| Block Material | Nylon |
| Temp. Range | -40 Degrees to 275 Degrees F |
| Pieces per Foot | 34 |
| Number of Connections | 2 |
| Material | Nylon: block |
| Maximum Operating Temperature | 257 Degrees F |
| Includes | Adhesive Backed Strips, Cover, End Barrier, End Clamps, Fanning Strip, Marking Strip End Plug, Mounting Track, Sheets of Marked Tabs, Sheets of Marking Tabs, Vinyl Marking Strip |
| End Barrier Compatibility | 5B361 |
| UL 94 Flammability Rating | V-2 |
| Torque | 20 lb-in |
| Terminal Material | Copper |
| Minimum Operating Temperature | -40 Degrees F |
| 2-Pole Jumper Compatibility | 5B366 |
| Housing Material | Nylon |
| 6-Pole Jumper Compatibility | 5B365 |
| RoHS Compliant | Yes |
| Compatible Manufacturer Model Number | 9080 GH21, 9080 GH31, GH10, GH11, GH136, GH200, GH210, GH220, GH236, GH336, GH52, GH60, GH62, GM6B, MH320, MH339, MH379, MHA10 |
| Ambient Air Temperature For Operation | -40-257°F |
| Electrical Connection | copper box lugs |
| Number Of Terminal Blocks | 34 per foot |
| [Ue] Rated Operational Voltage | 600 V AC/DC |
| Localisation On Device | standard |
| Protection Type | fingersafe DIN 57470 |
| Electrical Connrection Tightening Torque | Lug copper 18 to 20 lbf.in (2.03 to 2.26 N.m) : AWG 22 to AWG 8 copper) |
| Country of Origin | South Korea (subject to change) |
