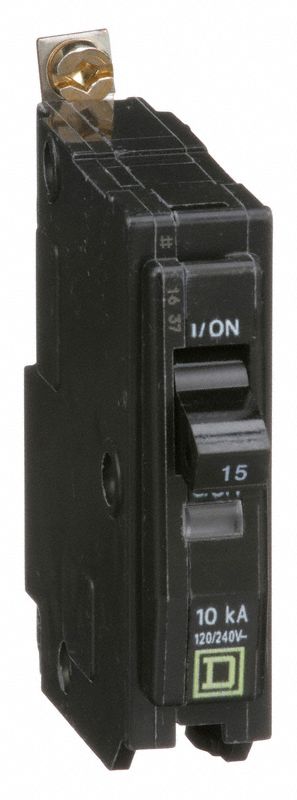

Square D QOB115 Miniature Circuit Breaker, 15 A, 1-Pole, 120/240V AC, Bolt-On
Original price
$61.01
-
Original price
$61.01
Original price
$61.01
$61.01
-
$61.01
Current price
$61.01
Miniature Circuit Breaker, Amps 15 A, AC Voltage Rating 120/240V AC, Circuit Breaker Type Standard, Number of Poles 1, DC Voltage Rating 48V DC, Circuit Breaker Actuator Paddle, Circuit Breaker Mounting Style Bolt On, Compatible Panelboard/Load Center Series QO, Phase Single, Series QOB, Max. AIR Rating 10kA at 120/240V AC, For Use With Square D NQOD Panelboards, Terminal Connection Pressure Plate, Frame Size 100A/QO, Length 3 in, Width 0.75 in, Depth 2.91 in, Min. Operating Temp. 77 Degrees F
| Series | QO |
|---|---|
| Amps | 15A |
| Number of Poles | 1 |
| AC Voltage Rating | 120/240V AC |
| Circuit Breaker Type | Standard |
| Phase | 1 |
| Circuit Breaker Actuator | Paddle |
| Circuit Breaker Mounting Style | Bolt On |
| Max. AIR Rating | 10kA at 120/240V AC |
| Terminal Connection | Pressure Plate |
| DC Voltage Rating | 48V DC |
| For Use With | NQ Panelboards, QO Load Center Accessory |
| Standards | UL Listed |
| Interrupt Rating | 10 kA at 120/240V AC |
| Features | Mercury Free |
| Application | HACR and Switching Duty rated Applications |
| Min. Operating Temp. | 77 Degrees F |
| Max. Operating Temp. | 104 Degrees F |
| Compatible Panelboard/Load Center Series | QO |
| Voltage | 120/240 VAC |
| CAD Available | Yes |
| Instantaneous Trip | Trip Free |
| Trip Type | Thermal Magnetic, Trip Free |
| Country of Origin | United States |
