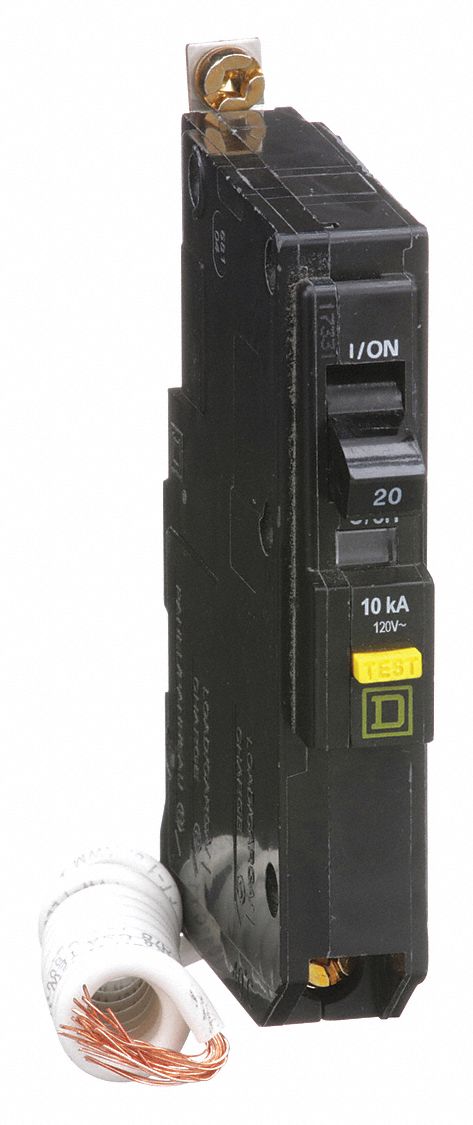

Square D QOB120GFI Miniature Circuit Breaker, QO Series, 20 A, 1 Pole, 120V AC, GFI, 10 kA AIR
Original price
$395.10
-
Original price
$395.10
Original price
$395.10
$395.10
-
$395.10
Current price
$395.10
Square D QOB120GFI Miniature Circuit Breaker, QO Series, 20 A, 1 Pole, 120V AC, 10 kA AIR at 120V AC, A Curve. Bolt-on mounting, Class A 6 mA Ground Fault Protecting. Designed for use in QO and NQOD panelboards. Suitable for protection of branch circuits supplying receptacles, lighting and small appliances against ground faults. Trip indicator and push-to-test feature. UL Listed.
| Series | QO |
|---|---|
| Amps | 20 A |
| Number of Poles | 1 |
| AC Voltage Rating | 120V AC |
| Circuit Breaker Type | Ground Fault Protecting Class A 6 mA |
| Phase | 1 |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Bolt On |
| Max. AIR Rating | 10kA at 120V AC |
| Trip Curve | A Curve |
| For Use With | QO and NQOD Panelboards |
| Terminal Connection | Lug |
| Standards | UL Listed, CSA Certified, HACR Rated |
| Features | Push-to-Test, Trip Indicator |
| Country of Origin | Mexico |
