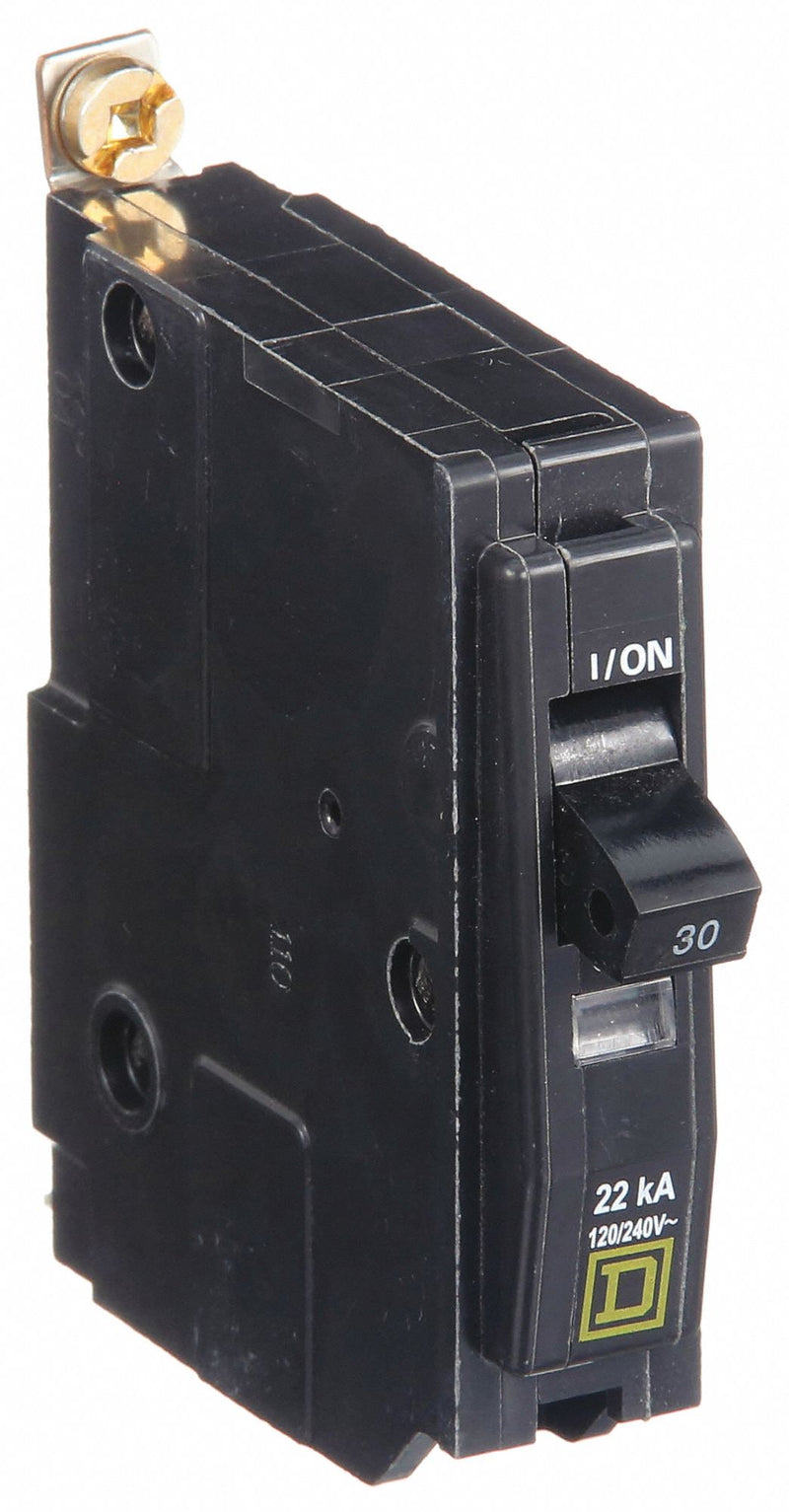

Square D QOB130VH Miniature Circuit Breaker, QO Series, 30 A, 1-Pole, 120/240 V AC, Bolt-On, High Interrupting Capacity 22kA, Paddle Actuator
Original price
$110.01
-
Original price
$110.01
Original price
$110.01
$110.01
-
$110.01
Current price
$110.01
These QOB series miniature circuit breakers are bolted into place in NQOD and NQ panelboards or interiors, so they're more stable than plug-in or unit-mount circuit breakers. They interrupt currents when low-level faults are detected in the circuit. They have a lug orientation to allow for straight-in wiring through bus bars, which eliminates the need to pigtail wires. High Interrupting Capacity (22kA at 120/240V AC) for demanding commercial applications.
| Amps | 30 A |
| AC Voltage Rating | 120/240V AC |
| Circuit Breaker Type | High Interrupting Capacity |
| Number of Poles | 1 |
| DC Voltage Rating | Not Rated |
| Circuit Breaker Actuator | Paddle |
| Circuit Breaker Mounting Style | Bolt On |
| Compatible Panelboard/Load Center Series | QO |
| Phase | Single |
| Max. AIR Rating | 22kA at 120/240V AC |
| For Use With | Square D NQOD Panelboards |
| Terminal Connection | Pressure Plate |
| Frame Size | 100A/QO |
| Length | 3 in |
| Width | 0.75 in |
| Depth | 2.91 in |
| Min. Operating Temp. | 77 Β°F |
| Max. Operating Temp. | 104 Β°F |
| Min. Wire Size | 14 AWG |
| Max. Wire Size | 8 AWG |
| Standards | UL Listed |
