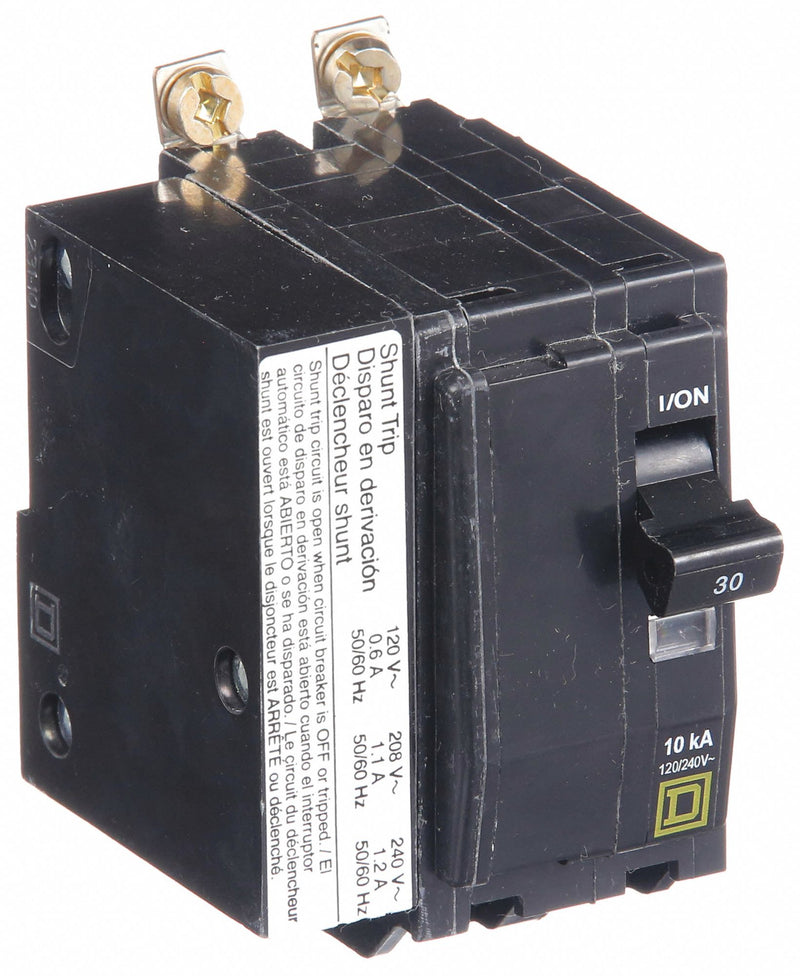

Square D QOB2301021 Miniature Circuit Breaker, Shunt Trip, 30A, 120/240V AC, 2 Poles, Bolt On
Original price
$390.61
-
Original price
$390.61
Original price
$390.61
$390.61
-
$390.61
Current price
$390.61
Miniature Circuit Breaker, Amps 30 A, AC Voltage Rating 120/240V AC, Circuit Breaker Type Shunt Trip, Number of Poles 2, DC Voltage Rating 48V DC, Circuit Breaker Actuator Paddle, Circuit Breaker Mounting Style Bolt On, Compatible Panelboard/Load Center Series QO, Phase Single, Series QOB, Max. AIR Rating 10kA at 120/240V AC, For Use With Square D NQOD Panelboards, Terminal Connection Pressure Plate, Frame Size 100A/QO, Length 3 in, Width 2.25 in, Depth 2.91 in, Min. Operating Temp. 77 Degrees F
| Series | QO |
|---|---|
| Amps | 30A |
| Number of Poles | 2 |
| AC Voltage Rating | 120/240V AC |
| Circuit Breaker Type | Standard |
| Phase | 1 |
| Circuit Breaker Actuator | Paddle |
| Circuit Breaker Mounting Style | Bolt On |
| Max. AIR Rating | 10kA at 120/240V AC |
| Trip Type | Shunt Trip |
| Terminal Connection | Pressure Plate |
| DC Voltage Rating | 48V DC |
| Standards | UL Listed |
| For Use With | NQ Panelboards |
| Application | HACR rated Applications |
| Features | Mercury Free |
| Interrupt Rating | 10 kA at 120/240V AC |
| Compatible Panelboard/Load Center Series | QO |
| Max. Operating Temp. | 104 Degrees F |
| Min. Operating Temp. | 77 Degrees F |
| Voltage | 120/240 VAC |
| Country of Origin | Mexico |
