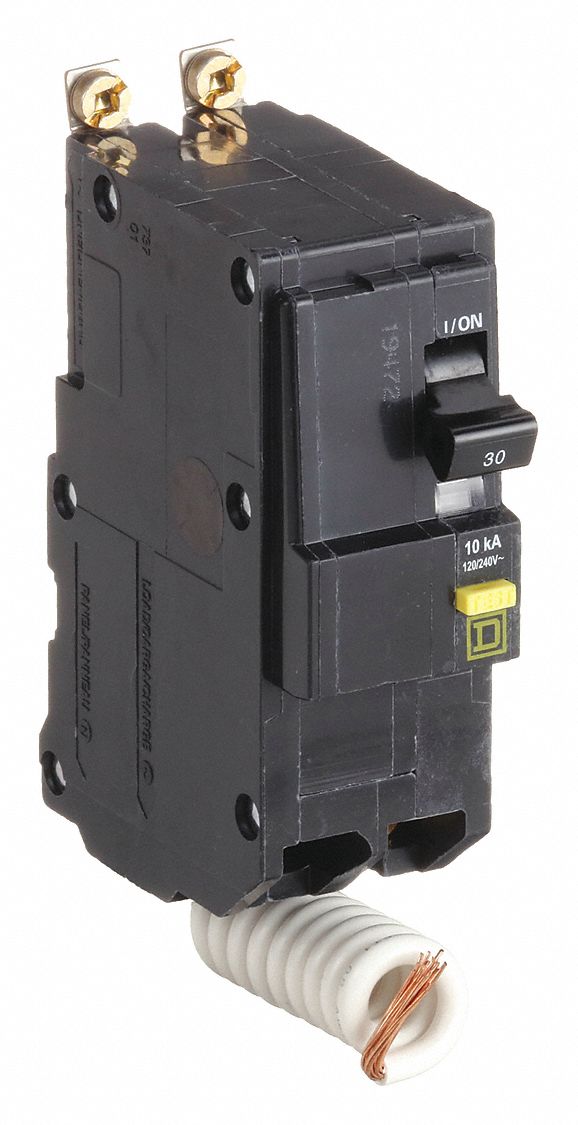

Square D QOB230GFI Miniature Circuit Breaker, GFCI, 30A, 120/240V AC, 2 Poles, Bolt On
Original price
$622.44
-
Original price
$622.44
Original price
$622.44
$622.44
-
$622.44
Current price
$622.44
Miniature Circuit Breaker, Amps 30 A, AC Voltage Rating 120/240V AC, Circuit Breaker Type Ground Fault Circuit Interrupter, Number of Poles 2, DC Voltage Rating Not Rated, Circuit Breaker Actuator Paddle, Circuit Breaker Mounting Style Bolt On, Compatible Panelboard/Load Center Series NQ, QO, Phase Single, Series QOB, Max. AIR Rating 10kA at 120/240V AC, For Use With QO Load Centers and NQ Panelboards, Terminal Connection Pressure Plate, Frame Size 100A/QO, Length 4.12 in, Width 1.5 in
| Series | QO |
|---|---|
| Amps | 30A |
| Number of Poles | 2 |
| AC Voltage Rating | 120/240V AC |
| Circuit Breaker Type | Ground Fault Protecting Class A 6 mA |
| Phase | 1 |
| Circuit Breaker Actuator | Paddle |
| Circuit Breaker Mounting Style | Bolt On |
| Max. AIR Rating | 10kA at 120/240V AC |
| Terminal Connection | Pressure Plate |
| DC Voltage Rating | Not Rated |
| Curve Type | A |
| Standards | UL Listed |
| For Use With | NQ Panelboards |
| Features | Mercury Free |
| Interrupt Rating | 10 kA at 120/240V AC |
| Max. Operating Temp. | 104 Degrees F |
| Min. Operating Temp. | 77 Degrees F |
| Compatible Panelboard/Load Center Series | NQ, QO |
| Voltage | 120/240 VAC |
| CAD Available | Yes |
| Trip Type | Thermal Magnetic, Trip Free |
| Instantaneous Trip | Trip Free |
| Country of Origin | Mexico |
