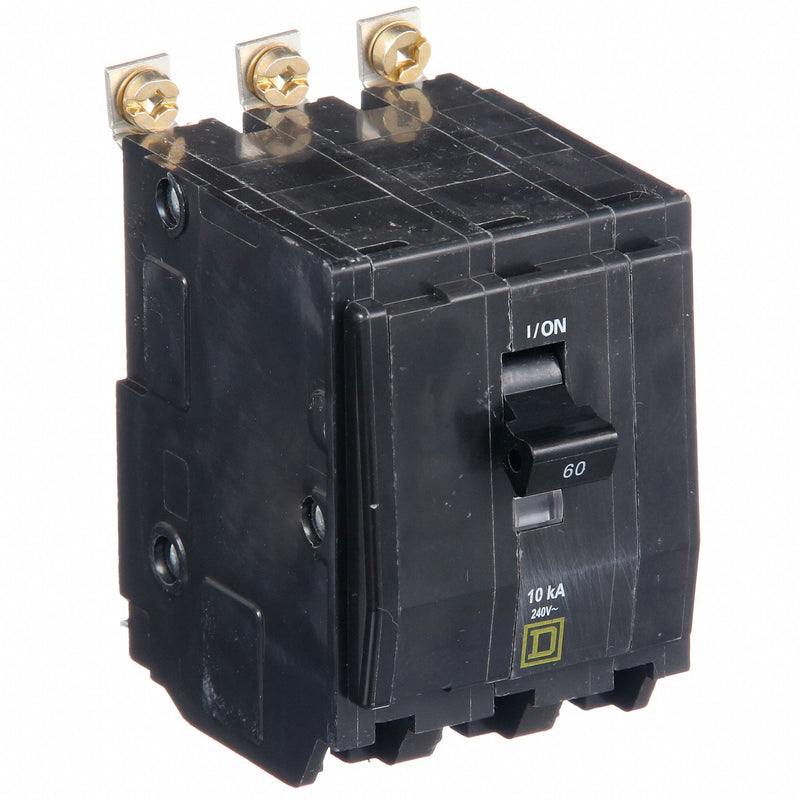

Square D QOB360 Miniature Circuit Breaker, 60 A, 3-Pole, 120/240V AC, Bolt-On
Original price
$442.51
-
Original price
$442.51
Original price
$442.51
$442.51
-
$442.51
Current price
$442.51
Miniature Circuit Breaker, Amps 60 A, AC Voltage Rating 120/240V AC, Circuit Breaker Type Standard, Number of Poles 3, DC Voltage Rating 48V DC, Circuit Breaker Actuator Paddle, Circuit Breaker Mounting Style Bolt On, Compatible Panelboard/Load Center Series QO, Phase Three, Series QOB, Max. AIR Rating 10kA at 120/240V AC, For Use With Square D NQOD Panelboards, Terminal Connection Lug, Frame Size 100A/QO, Length 3.12 in, Width 2.25 in, Depth 2.91 in, Min. Operating Temp. 77 Degrees F
| Series | QO |
|---|---|
| Amps | 60A |
| Number of Poles | 3 |
| AC Voltage Rating | 120/240V AC |
| Circuit Breaker Type | Standard |
| Phase | 3 |
| Circuit Breaker Actuator | Paddle |
| Circuit Breaker Mounting Style | Bolt On |
| Max. AIR Rating | 10kA at 120/240V AC |
| Terminal Connection | Lugs |
| DC Voltage Rating | 48V DC |
| Standards | UL Listed |
| For Use With | NQ Panelboards, QO Load Centers |
| Features | Mercury Free |
| Interrupt Rating | 10 kA at 120/240V AC |
| Application | HACR rated Applications |
| Min. Operating Temp. | 77 Degrees F |
| Max. Operating Temp. | 104 Degrees F |
| Compatible Panelboard/Load Center Series | QO |
| Voltage | 240VAC |
| CAD Available | Yes |
| Trip Type | Thermal Magnetic, Trip Free |
| Instantaneous Trip | Trip Free |
| Country of Origin | Mexico |
