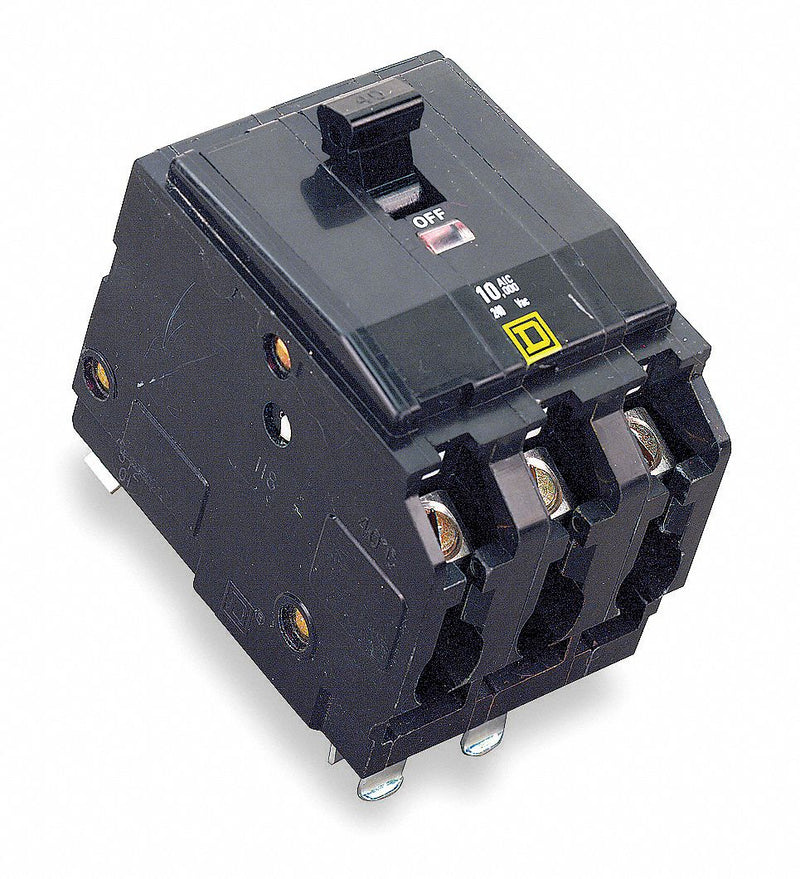

Square D QOB3701021 Miniature Circuit Breaker, 70 A, 120/240V AC, 3-Pole, Shunt Trip, 10kA, Bolt-On
Original price
$748.64
-
Original price
$748.64
Original price
$748.64
$748.64
-
$748.64
Current price
$748.64
Miniature Circuit Breaker, Amps 70 A, AC Voltage Rating 120/240V AC, Circuit Breaker Type Shunt Trip, Number of Poles 3, DC Voltage Rating 48V DC, Circuit Breaker Actuator Paddle, Circuit Breaker Mounting Style Bolt On, Compatible Panelboard/Load Center Series QO, Phase Three, Series QOB, Max. AIR Rating 10kA at 120/240V AC, For Use With Square D NQOD Panelboards, Terminal Connection Lug, Frame Size 100A/QO, Length 3.12 in, Width 3 in, Depth 2.91 in, Min. Operating Temp. 77 Degrees F
| Series | QO |
|---|---|
| Amps | 70A |
| Number of Poles | 3 |
| AC Voltage Rating | 120/240V AC |
| Circuit Breaker Type | Standard |
| Phase | 3 |
| Circuit Breaker Actuator | Paddle |
| Circuit Breaker Mounting Style | Bolt On |
| Max. AIR Rating | 10kA at 120/240V AC |
| Trip Type | Shunt Trip |
| Terminal Connection | Lugs |
| DC Voltage Rating | 48V DC |
| For Use With | NQ Panelboards |
| Standards | UL Listed |
| Interrupt Rating | 10 kA at 120/240V AC |
| Application | HACR rated Applications |
| Features | Mercury Free |
| Compatible Panelboard/Load Center Series | QO |
| Max. Operating Temp. | 104 Degrees F |
| Min. Operating Temp. | 77 Degrees F |
| Voltage | 240VAC |
| Country of Origin | Mexico |
