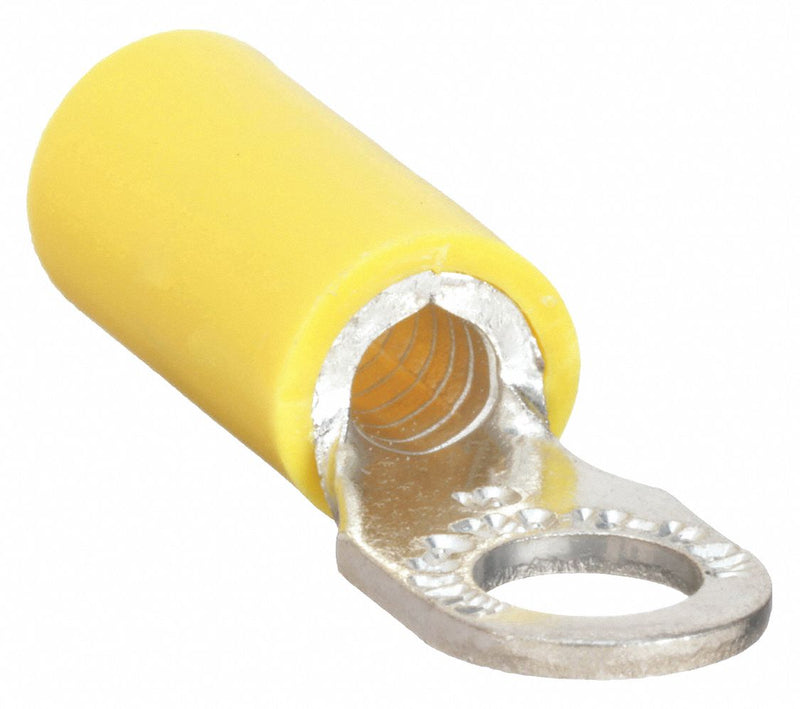

Sta-Kon 10RC-14 Ring Terminal, Yellow, Vinyl Insulation, 1/4 in Stud Size, 12 AWG to 10 AWG Wire Sizes
UPC: | Harmonization / Schedule B : 8536.90.4000
Country of Origin: United States | Shipping Weight: 0.29 lbs
Original price
$122.50
-
Original price
$122.50
Original price
$122.50
$122.50
-
$122.50
Current price
$122.50
Ring Terminal, Insulation Color Yellow, Insulation Coverage Partial Coverage, Insulation Material Vinyl, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 12 AWG, Maximum Wire Size 10 AWG, Termination Style Crimp, Tongue Width 0.5 in, Contact Finish Tin, Contact Material Copper, Standards CSA Certified, UL Listed E9809, Barrel Length 0.63 in, Barrel Style Serrated Barrel, Compatible Manufacturer Model Number ERG4001, WT112M, WT145C, WT2000
| Maximum Wire Size | 10 AWG |
|---|---|
| Minimum Wire Size | 12 AWG |
| Stud Size | 1/4 in |
| Tongue Width - Wire Connector | 0.5 in |
| Overall Length | 1.16 in |
| Tongue Thickness | 0.04 in |
| Barrel Length | 0.63 in |
| Tongue Length | 0.53 in |
| Tongue Width | 0.5 in |
| Wire Rope Length | 1.16 in |
| Length | 1.16 in |
| Terminal Shape | Standard Ring Tongue |
| Termination Style | Crimp Termination Only |
| Insulation Color | Yellow |
| Insulation Coverage | Partial Coverage |
| Insulation Type | Vinyl |
| Contact Material | Copper |
| Maximum Voltage | 600 V |
| Minimum Operating Temperature | 221 Degrees F |
| Maximum Operating Temperature | 221 Degrees F |
| Standards | CSA Certified, UL Listed E9809 |
| Seam | Brazed |
| Connection Material | Copper |
| Max. Temp. | 221 Degrees F |
| Connection Type | Crimp |
| Wire Range | 12 to 10 AWG |
| Terminal Connection | Crimp |
| Terminal Type | Standard |
| Features | These terminals are self-insulated with a PVC insulation sleeve of extra length to give protection and relieve bending stress at wires flex point.; Brazed seam barrel is serrated to obtain high pull-out value.; Application Tools: WT145C, WT2000, WT112M, ERG4001; Alternate Package Qty: RC717 |
| Special Features | Protection and Relieve Bending Stress At Wires Flex Point |
| Barrel Style | Brazed Serrated |
| Seam Style | Brazed |
| Contact Finish | Tin |
| Compatible Manufacturer Model Number | ERG4001, WT112M, WT145C, WT2000 |
| Hole Spacing | 0.27 in |
| Insulation Material | Vinyl |
| Compatible with Product Type | Copper Conductors |
| Insulation Dia | 0.21 in |
| Surface protection | Tinned |
| Country of Origin | United States |
