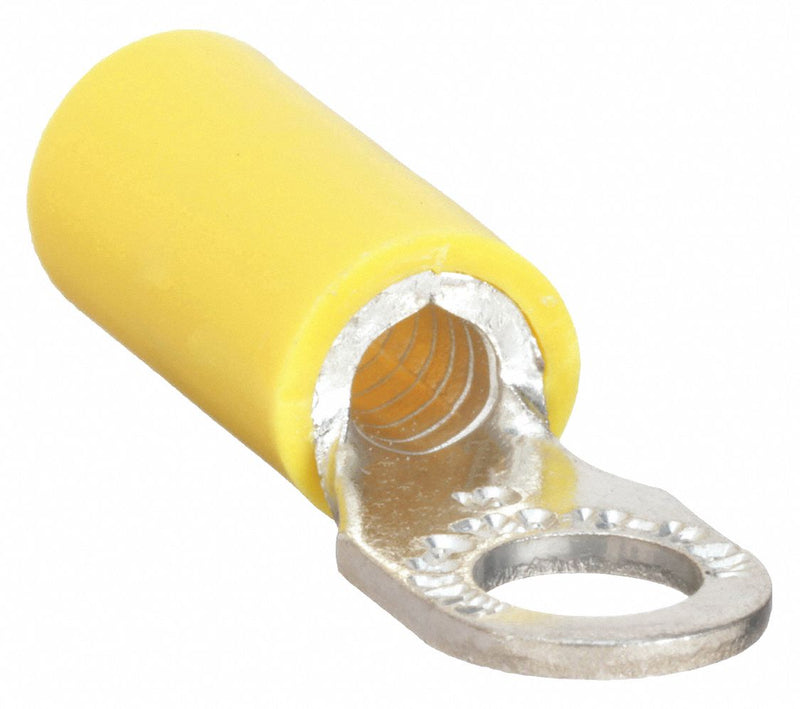

Sta-Kon 10RC-516 Ring Terminal, Yellow, Vinyl Insulated, 5/16 in Stud, 12-10 AWG, 600V
Original price
$121.18
-
Original price
$121.18
Original price
$121.18
$121.18
-
$121.18
Current price
$121.18
Ring Terminal, Insulation Color Yellow, Insulation Coverage Partial Coverage, Insulation Material Vinyl, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 12 AWG, Maximum Wire Size 10 AWG, Termination Style Crimp, Tongue Width 0.5 in, Contact Finish Tin, Contact Material Copper, Standards CSA Certified, UL Listed E9809, Barrel Length 0.55 in, Barrel Style Brazed Serrated, Compatible with Product Type Copper Conductors, Hole Spacing 0.37 in
| Terminal Shape | Standard Ring Tongue |
|---|---|
| Termination Style | Crimp Termination Only |
| Insulation Color | Yellow |
| Insulation Coverage | Partial Coverage |
| Insulation Type | Vinyl |
| Contact Material | Copper |
| Maximum Voltage | 600 V |
| Maximum Operating Temperature | 221 Degrees F |
| Standards | CSA Certified, UL Listed E9809 |
| Terminal Type | Standard |
| Seam | Brazed |
| Wire Range | 12 to 10 AWG |
| Connection Type | Crimp |
| Contact Finish | Tin |
| Hole Spacing | 0.37 in |
| Barrel Style | Serrated Barrel |
| Compatible with Product Type | Copper Conductors |
| Country of Origin | United States |
