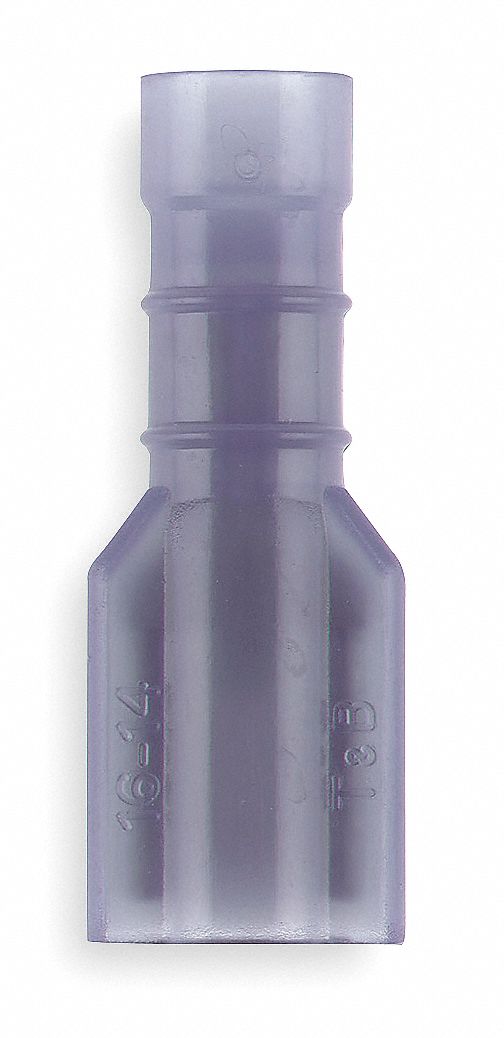

Sta-Kon 14RB-2577 Wire Disconnect, Female Socket, Blue, Nylon, Full Coverage, 16 AWG – 14 AWG Wire Size
UPC: | Harmonization / Schedule B : 8536.90.4000
Country of Origin: United States | Shipping Weight: 0.4 lbs
Original price
$197.70
-
Original price
$197.70
Original price
$197.70
$197.70
-
$197.70
Current price
$197.70
Female Disconnect, Contact Finish Tin, Contact Material Brass, Insulation Color Blue, Insulation Coverage Full Coverage, Insulation Material Nylon, Maximum Operating Temperature 221 Degrees F, Minimum Wire Size 16 AWG, Maximum Wire Size 14 AWG, Maximum Voltage 600 V, Tab Thickness 0.032 in, Tab Width 0.25 in, Terminal Type Socket, Termination Style Crimp, UL 94 Flammability Rating Not Rated, RoHS Compliant No, Seam Style Brazed, Standards UL E66716, Barrel Inside Diameter 0.086 in
| Tab Size | 0.032 in x 0.250 in |
|---|---|
| Overall Length | 1.01 in |
| Barrel Inside Dia. | 0.086 in |
| Barrel Inside Diameter | 0.086 in |
| Minimum Wire Size | 16 AWG |
| Barrel Size | Long |
| Tab Width | 0.25 in |
| Maximum Wire Size | 14 AWG |
| Tab Thickness | 0.032 in |
| Stock Thickness | 0.03 |
| Wire Rope Length | 1.01 in |
| Length | 1.01 in |
| MFR # | 14RB-2577 |
| Zoro # | G2230995 |
| UPC # | - |
| Country of Origin | United States |
| Insulation | Full |
| Material | Brass |
| Insulation Color | Blue |
| Color | Blue |
| Wire Range | 16 to 14 AWG |
| Connection Type | Crimp |
| Insulation Type | Nylon |
| Seam | Brazed |
| Max. Temp. | 221 Degrees F |
| Max. Voltage | 600 V |
| Connection Material | Tin-Plated Copper |
| Standards | UL E66716 |
| Features | Unique construction of the female disconnect offers long-term dependability.; Brazed seam serrated barrel provides maximum tensile strength.; Application Tools: WT145C, WT2000, WT112M, ERG4001; Alternate Package Qty: RB2573 |
| Seam Style | Brazed |
| UL 94 Flammability Rating | Not Rated |
| Contact Finish | Tin |
| Maximum Voltage | 600 V |
| Terminal Type | Socket |
| Insulation Coverage | Full Coverage |
| Barrel Style | Funnel Entry |
| Special Features | Brazed Seam Serrated Barrel |
| Termination Style | Crimp |
| Maximum Operating Temperature | 221 Degrees F |
| RoHS Compliant | No |
| Insulation Material | Nylon |
| Contact Material | Brass |
| Disconnect Type | Female - 250 Series |
| Maximum Insulation (inches) | 0.185 |
| A (inches) | 0.97 |
| Terminal Series | RB |
| Temperature Rating | 105°C |
| Flammability Rating | UL 94 V-2 |
| Application Tools | WT145C, WT2000, WT112M, ERG4001, ERG4003 |
| B (inches) | 0.38 |
| Finish | Electro Tin-Plated |
| Voltage Rating | 600V |
| Recommended Tool | ERG4001 |
| AWG-range | 16-14 |
| Material insulation | PA |
| Type | Nylon Fully Insulated Female Disconnect |
| Disconnect Style | Quick Disconnect |
| Country of Origin | USA (subject to change) |
