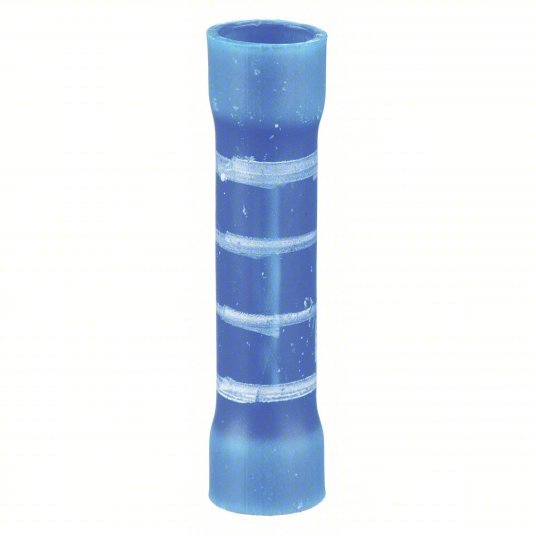

Sta-Kon 2RB14X Splice Connector 14 AWG/16 AWG Wire Size Range, UL E9809, Crimp Termination, Vinyl, 100 PK

Sta-Kon 2RB14X Splice Connector 14 AWG/16 AWG Wire Size Range, UL E9809, Crimp Termination, Vinyl, 100 PK

$80.35 - $80.35
$80.35
$80.35 - $80.35
$80.35
Splice Connector, Connection Type Crimp, Insulation Material Vinyl, Insulation Color Blue, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 16 AWG, Maximum Wire Size 14 AWG, Standards UL E9809, Termination Style Crimp, Contact Material Copper, Overall Length 1.13 in, Seam Style Brazed, Barrel Inside Diameter 0.15 in, Body Finish Tin Plated, Body Material Copper, Compatible Installation Tool Model Number ERG4001, WT112M, WT145C, WT2000
Wire Range 16 to 14 AWG
Insulation Type Vinyl
Seam Brazed
Material Copper
Connection Type Crimp
Insulation Color Blue
Color Blue
Max. Voltage 600 V
Max. Temp. 221 Degrees F
Connection Material Brass
Standards UL E9809
Connector Type Butt Splice
Voltage Rating 600 V
Compatible Installation Tool Model Number ERG4001, WT112M, WT145C, WT2000
Maximum Voltage 600 V
Insulation Material Vinyl
Body Finish Tin Plated
Contact Material Copper
Body Material Copper
Seam Style Brazed
Maximum Operating Temperature 221 Degrees F
Termination Style Crimp
Features In butt splices, the wires are butted together and crimped at each end of the splice.; These splices are color-coded according to wire size.; Application Tools: WT145C, WT2000, WT112M, ERG4001; Alternate Package Qty: RBB217200
Barrel ID 0.15 in
Standard UL E9809
Type Vinyl Insulated Butt Splice
Finish Electro -Tin Plated
Temperature Rating 105 C
AWG-range 16-14
Special Features In butt splices, the wires are butted together and crimped at each end of the splice. These splices are color-coded according to wire size.
Surface protection Tinned
