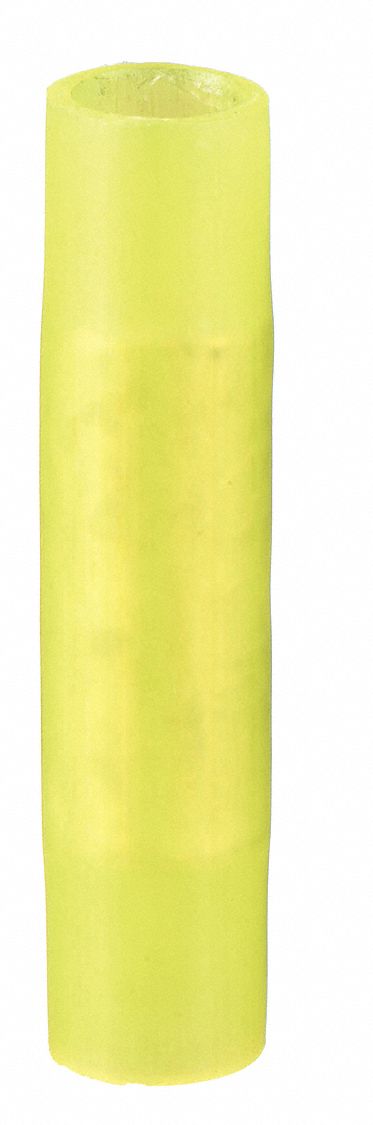

Sta-Kon 2RC10 Butt Splice Connector, Yellow, Nylon, For Wire Size 12 AWG – 10 AWG, 600 V, Pack Qty 50
UPC: | Harmonization / Schedule B : 8536.90.4000
Country of Origin: United States | Shipping Weight: 0.35 lbs
Original price
$139.29
-
Original price
$139.29
Original price
$139.29
$139.29
-
$139.29
Current price
$139.29
Splice Connector, Connection Type Crimp, Insulation Material Nylon, Insulation Color Yellow, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 12 AWG, Maximum Wire Size 10 AWG, Standards MIL-T-7928, UL E9809, Termination Style Crimp, Contact Material Copper, Overall Length 1.26 in, Seam Style Overlapped, Barrel Inside Diameter 0.21 in, Body Finish Tin Plated, Body Material Copper, Compatible Installation Tool Model Number ERG4001, WT112M, WT145C
| Maximum Wire Size | 10 AWG |
|---|---|
| Minimum Wire Size | 12 AWG |
| Overall Length | 1.26 in |
| Barrel Inside Dia. | 0.21 in |
| Overall Width | 0.28 in |
| For Maximum Wire Insulation Diameter | 0.21 in |
| Barrel Inside Diameter | 0.21 in |
| For Maximum Wire Size - Solid | 10 AWG |
| For Minimum Wire Size - Solid | 12 AWG |
| Wire Rope Length | 1.26 in |
| Length | 1.26 in |
| MFR # | 2RC10 |
| Zoro # | G3066865 |
| UPC # | - |
| Country of Origin | United States |
| Type | Butt Splice |
| Color | Yellow |
| Insulation Material | Nylon |
| Maximum Voltage | 600 V |
| Maximum Operating Temperature | 221 Degrees F |
| RoHS Compliant | Yes |
| Standards | MIL-T-7928, UL E9809 |
| Material | Copper |
| Seam Style | Overlapped |
| Compatible Installation Tool Model Number | ERG4001, WT112M, WT145C |
| Termination Style | Crimp |
| Features | Nylon insulated splices meet or exceed the requirements of MIL-T-7928.; These splices are color-coded according to wire size.; Application Tools: ERG4001, WT145C, WT112M; Alternate Package Qty: RCC21 |
| Finish | Electro Tin Plated |
| Special Features | Nylon insulated splices meet or exceed the requirements of MIL-T-7928. These splices are color-coded according to wire size. |
| Contact Material | Copper |
| Insulation Color | Yellow |
| Body Material | Copper |
| Body Finish | Tin Plated |
| Country of Origin | USA (subject to change) |
