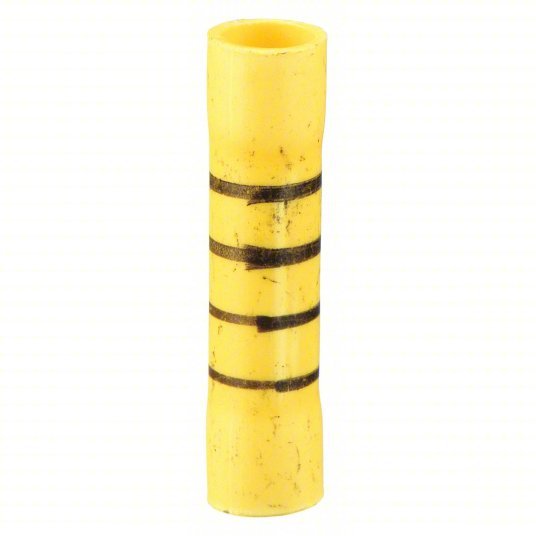

Sta-Kon 2RC10X Splice Connector 10 AWG/12 AWG Wire Size Range, UL E9809, Crimp Termination, Vinyl, 50 PK

Sta-Kon 2RC10X Splice Connector 10 AWG/12 AWG Wire Size Range, UL E9809, Crimp Termination, Vinyl, 50 PK

$79.40 - $79.40
$79.40
$79.40 - $79.40
$79.40
Splice Connector, Connection Type Crimp, Insulation Material Vinyl, Insulation Color Yellow, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 12 AWG, Maximum Wire Size 10 AWG, Standards UL E9809, Termination Style Crimp, Contact Material Copper, Overall Length 1.31 in, Seam Style Brazed, Barrel Inside Diameter 0.25 in, Body Finish Tin Plated, Body Material Copper, Compatible Installation Tool Model Number ERG4001, WT112M, WT145C, WT2000
Wire Range 12 to 10 AWG
Insulation Type Vinyl
Seam Brazed
Material Copper
Connection Type Crimp
Insulation Color Yellow
Color Yellow
Max. Voltage 600 V
Max. Temp. 221 Degrees F
Connection Material Brass
Standards UL E9809
Connector Type Butt Splice
Voltage Rating 600 V
Contact Material Copper
Body Material Copper
Insulation Material Vinyl
Maximum Voltage 600 V
Body Finish Tin Plated
Compatible Installation Tool Model Number ERG4001, WT112M, WT145C, WT2000
Termination Style Crimp
Seam Style Brazed
Maximum Operating Temperature 221 Degrees F
Features In butt splices, the wires are butted together and crimped at each end of the splice.; These splices are color-coded according to wire size.; Application Tools: WT145C, WT2000, WT112M, ERG4001
Barrel ID 0.25 in
Type Vinyl Insulated Butt Splice
Finish Electro -Tin Plated
Temperature Rating 105 C
Standard UL E9809
Special Features In butt splices, the wires are butted together and crimped at each end of the splice. These splices are color-coded according to wire size.
Surface protection Tinned
AWG-range 12-10
