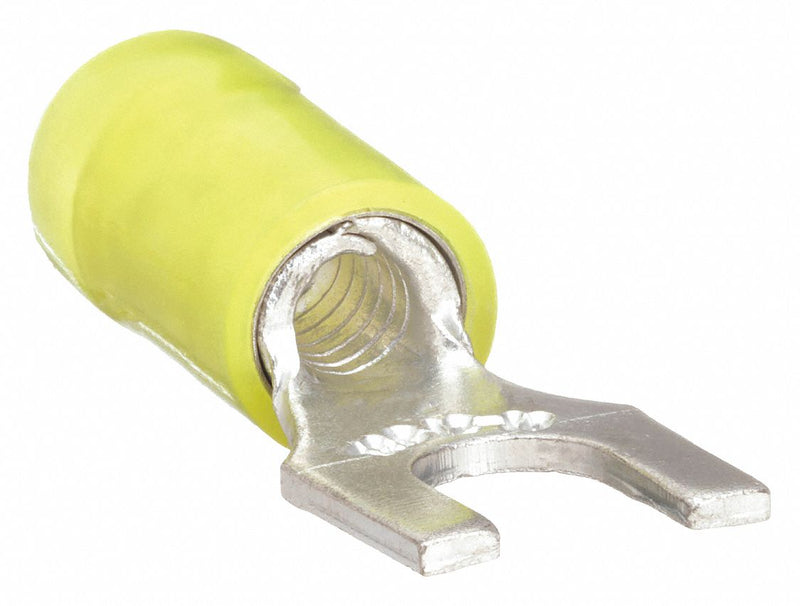

Sta-Kon RC10-10F Fork Terminals, Yellow, Nylon, #10 Stud Size, 12 AWG – 10 AWG Wire Range, Std Fork, 600 V
UPC: 786210804392 | Harmonization / Schedule B : 8536.90.4000
Country of Origin: United States | Shipping Weight: 0.15 lbs
Original price
$119.64
-
Original price
$119.64
Original price
$119.64
$119.64
-
$119.64
Current price
$119.64
Fork Terminal, Contact Finish Tin, Contact Material Copper, Insulation Color Yellow, Insulation Coverage Partial Coverage, Insulation Material Nylon, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Maximum Wire Size 10 AWG, Stud Size #10, Termination Style Crimp, Tongue Length 0.42 in, RoHS Compliant No, Seam Style Brazed, Standards CSA Certified, UL Listed, Barrel Length 0.54 in, Barrel Style Insulation Grip, 3KH52, 4XMR5
| Maximum Wire Size | 10 AWG |
|---|---|
| Minimum Wire Size | 12 AWG |
| Stud Size | #10 |
| Overall Length | 1 in |
| Tongue Width - Wire Connector | 0.37 in |
| Barrel Length | 0.54 in |
| Tongue Width | 0.37 in |
| Tongue Length | 1/2 in |
| Wire Rope Length | 1 in |
| Length | 1 in |
| MFR # | RC10-10F |
| Zoro # | G1111345 |
| UPC # | 786210804392 |
| Country of Origin | United States |
| Terminal Shape | Standard Fork |
| Termination Style | Crimp Termination Only |
| Insulation Color | Yellow |
| Insulation Coverage | Partial Coverage |
| Insulation Type | Nylon |
| Contact Material | Copper |
| Maximum Voltage | 600 V |
| Maximum Operating Temperature | 221 Degrees F |
| Standards | CSA Certified, UL Listed E9809 |
| Connection Type | Crimp |
| Seam | Overlapped |
| Wire Range | 12 to 10 AWG |
| Connection Material | Copper |
| Max. Temp. | 221 Degrees F |
| Terminal Connection | Crimp |
| Terminal Type | Standard |
| Features | Inner bronze insulation grip sleeve lengthens flex radius of conductor and eliminates conductor creep.; Nylon jacket is color-coded.; Application Tools: WT145C, WT2000, WT112M, ERG4001, WT145A; Alternate Package Qty: RC1153 |
| Compatible with Series | RC1153 |
| Compatible Manufacturer Model Number | ERG4001, WT112M, WT145A, WT145C, WT2000 |
| Contact Finish | Tin |
| RoHS Compliant | No |
| Special Features | Inner Bronze Insulation Grip Sleeve Lengthens Flex Radius of Conductor and Eliminates Conductor Creep |
| Insulation Material | Nylon |
| Barrel Style | Insulation Grip |
| Seam Style | Brazed |
| Compatible with Product Type | Crimper, Ratchet Crimper |
| Insulation Dia | 0.21 in |
| Surface protection | Tinned |
| Series | RC1153 |
| Country of Origin | USA (subject to change) |
