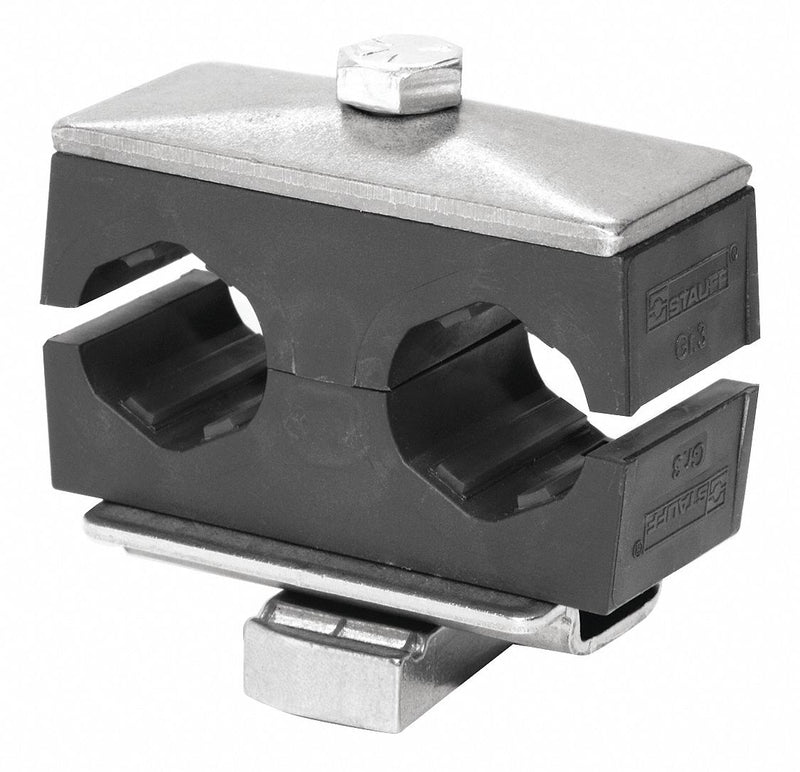

Stauff CRA-212.7/12.7-ACT-GD-AS-U-W5-K-642012 Twin Beta Clamp Kit, 12-11/16 mm Tube OD, Smooth Bore, 316 Stainless Steel, Polypropylene Cushion, Rail-Mount, 2 Lines
Original price
$84.55
-
Original price
$84.55
Original price
$84.55
$84.55
-
$84.55
Current price
$84.55
Beta Clamp, Clamp Bore Style Smooth, Clamp Material 316 Stainless Steel, Clamp Material Finish Elastomer, Clamp Type Strut Mount Twin Assembly, Cushion Material Polypropylene, For Maximum Outside Diameter 12 11/16 mm, For Number of Lines 2, For Strut Channel Width 41 5/16 mm
| Material | 316 Stainless Steel |
|---|---|
| Type | Anti-Corrosion Strut Mount Twin Clamp |
| Standards | API RP 552, DIN 3015-1, NACE SP 0108-2008 |
| Temp. Range (F) | -13 Degrees to 194 Degrees |
| Includes | (2) Hex Bolts, (2) Strut Rail Adaptors, Clamp Set, Cover Plate |
| Insert Material | Polypropylene |
| Hardware Material | 316 Stainless Steel |
| Max. Pressure (PSI) | 2000 |
| Maximum Operating Pressure | 2,000 psi |
| Minimum Operating Temperature | -13 Degrees F |
| For Number of Lines | 2 |
| Resistance Properties | Corrosion Resistant |
| Load Capacity | 1,570 lb |
| Mount Type | Rail-Mount |
| Clamp Bore Style | Smooth |
| Clamp Type | Strut Mount Twin Assembly |
| Clamp Material Finish | Elastomer |
| Includes Mounting Hardware | Yes |
| Series | Twin |
| System of Measurement | Metric |
| Cushion Material | Polypropylene |
| Maximum Operating Temperature | 194 Degrees F |
| Clamp Material | 316 Stainless Steel |
| Country of Origin | Germany |
