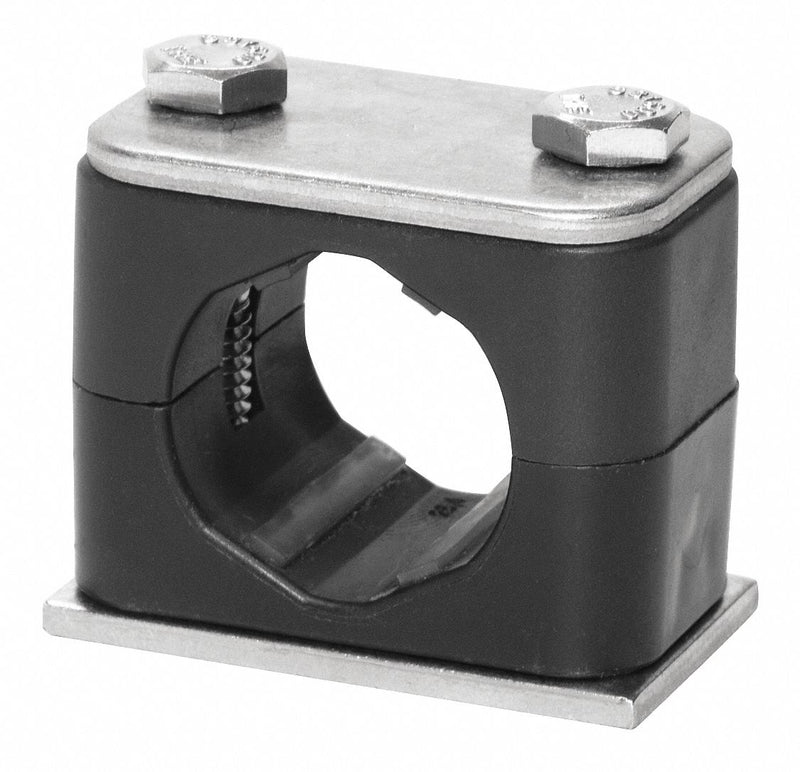

Stauff SP-325.4-ACT-DP-AS-U-W5-K-642012 Beta Clamp Kit, 25-3/8 mm Tube OD, Smooth Bore, 316 Stainless Steel, Polypropylene Cushion, Weld-On
Original price
$43.75
-
Original price
$43.75
Original price
$43.75
$43.75
-
$43.75
Current price
$43.75
Beta Clamp, Clamp Bore Style Smooth, Clamp Material 316 Stainless Steel, Clamp Material Finish Elastomer, Clamp Type Weld Mount Assembly, Cushion Material Polypropylene, For Maximum Outside Diameter 25-3/8 mm, For Number of Lines 1
| Material | 316 Stainless Steel |
|---|---|
| Type | Anti-Corrosion Weld Mount Standard Clamp |
| Temp. Range (F) | -13 Degrees to 194 Degrees |
| Includes | (2) Hex Head Bolts, Clamp Set, Cover Plate, Weld Plate |
| Hardware Material | 316 Stainless Steel |
| Max. Pressure (PSI) | 2000 |
| Standards | API RP 552, DIN 3015-1, NACE SP 0108-2008 |
| Insert Material | Polypropylene |
| Series | Standard |
| Clamp Material Finish | Elastomer |
| For Use On | Hose, Pipe, Tube Support |
| Maximum Operating Temperature | 194 Degrees F |
| Cushion Material | Polypropylene |
| System of Measurement | Metric |
| Maximum Operating Pressure | 2,000 psi |
| Clamp Bore Style | Smooth |
| Resistance Properties | Oil Resistant, Rain Resistant, Seawater Resistant |
| Includes Mounting Hardware | Yes |
| Mount Type | Weld-On |
| Clamp Type | Weld Mount Assembly |
| Clamp Style | Weld Mount Clamp |
| Features | Flame Retardant Polypropylene with Integrated Elastomer Drainage Strips |
| Clamp Material | 316 Stainless Steel |
| Minimum Operating Temperature | -13 Degrees F |
| Load Capacity | 1,570 lb |
| For Number of Lines | 1 |
| Country of Origin | Germany |
