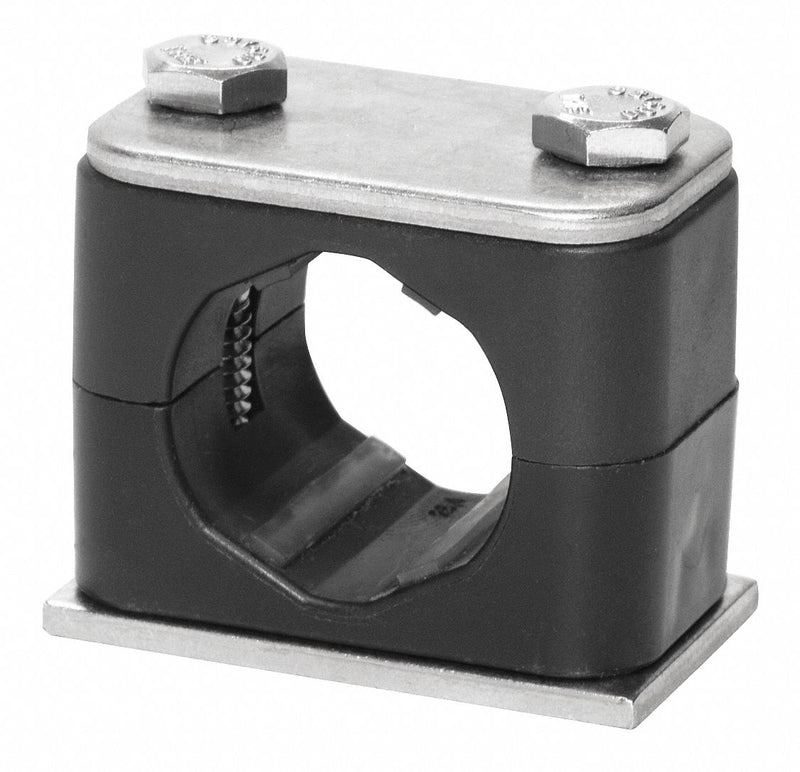

Stauff SP-532-ACT-DP-AS-U-W5-K-642012 Beta Clamp Kit, 32 mm Tube OD, Smooth Bore, 316 Stainless Steel, Polypropylene Cushion, Weld-On
Original price
$45.19
-
Original price
$45.19
Original price
$45.19
$45.19
-
$45.19
Current price
$45.19
Beta Clamp, Clamp Bore Style Smooth, Clamp Material 316 Stainless Steel, Clamp Material Finish Elastomer, Clamp Type Weld Mount Assembly, Cushion Material Polypropylene, For Maximum Outside Diameter 32 mm, For Number of Lines 1
| Material | 316 Stainless Steel |
|---|---|
| Type | Anti-Corrosion Weld Mount Standard Clamp |
| Temp. Range (F) | -13 Degrees to 194 Degrees |
| Includes | (2) Hex Head Bolts, Clamp Set, Cover Plate, Weld Plate |
| Hardware Material | 316 Stainless Steel |
| Max. Pressure (PSI) | 2000 |
| Standards | API RP 552, DIN 3015-1, NACE SP 0108-2008 |
| Insert Material | Polypropylene |
| Series | Standard |
| Clamp Material Finish | Elastomer |
| For Use On | Hose, Pipe, Tube Support |
| Maximum Operating Temperature | 194 Degrees F |
| Cushion Material | Polypropylene |
| System of Measurement | Metric |
| Maximum Operating Pressure | 2,000 psi |
| Clamp Bore Style | Smooth |
| Resistance Properties | Oil Resistant, Rain Resistant, Seawater Resistant |
| Includes Mounting Hardware | Yes |
| Mount Type | Weld-On |
| Clamp Type | Weld Mount Assembly |
| Clamp Style | Weld Mount Clamp |
| Features | Flame Retardant Polypropylene with Integrated Elastomer Drainage Strips |
| Clamp Material | 316 Stainless Steel |
| Minimum Operating Temperature | -13 Degrees F |
| Load Capacity | 1,570 lb |
| For Number of Lines | 1 |
| Country of Origin | Germany |
