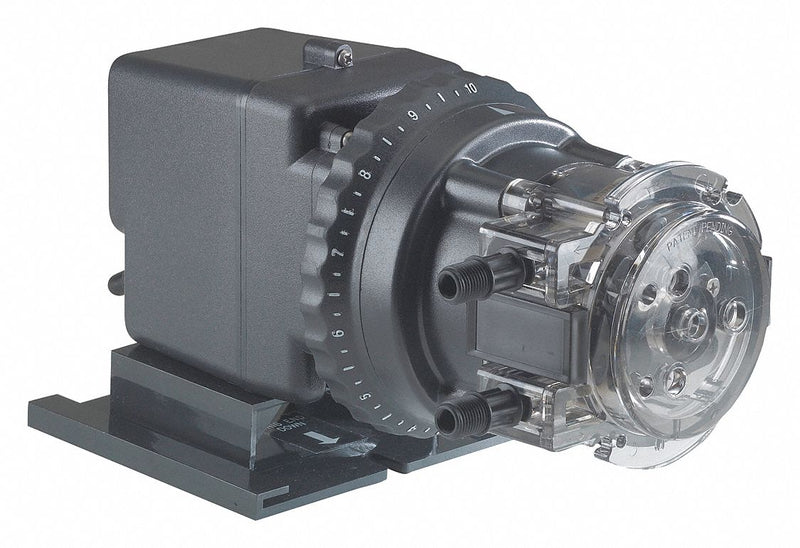

Stenner 45MJH2A1STAA Peristaltic Chemical Metering Pump, 120V AC, 1/30 HP, 10 gpd Max Flow, Santoprene
Original price
$1,244.14
-
Original price
$1,244.14
Original price
$1,244.14
$1,244.14
-
$1,244.14
Current price
$1,244.14
Peristaltic Chemical Metering Pump, Control Programs Manual Control, Discharge Connection Size 1/4 in, Discharge Connection Type NPT, Flow Rate (Maximum) 10 gpd, Flow Rate (Minimum) 0.5 gpd, Horsepower (Maximum) 1/30 hp, Intake Connection Size 1/4 in, Intake Connection Type NPT, Media Temperature (Maximum) 125 Degrees F, Media Temperature (Minimum) 32 Degrees F, Nameplate Voltage 120V AC, Number of Feeds 1, Pressure (Maximum) 100 psi, Reproducibility +/-2.0 Percent, Tubing Material Santoprene.
| Flow Rate Output Control | Adjustable |
| Control Programs | Manual Control |
| Flow Rate (Minimum) | 0.5 gpd |
| Flow Rate (Maximum) | 10 gpd |
| Turn Down Ratio | 20:1 |
| Reproducibility | ±2.0% |
| Number of Feeds | 1 |
| Pressure (Maximum) | 100 psi |
| Viscosity (Maximum) | 1,500 cps |
| Nameplate Voltage | 120V AC |
| Phase | Single |
| Motor Type | Shaded Pole |
| Motor Speed (Maximum) | 44 RPM |
| Horsepower (Maximum) | 1/30 hp |
| Duty Cycle | Continuous |
| Electrical Connection Type | Plug-In |
| Cord Length | 6 ft |
| Intake Connection Size | 1/4 in |
| Intake Connection Type | NPT |
| Discharge Connection Size | 1/4 in |
| Discharge Connection Type | NPT |
| Priming | Self-Priming |
| Tubing Material | Santoprene |
| Roller Material | Polyethylene |
| Head Material | Polycarbonate/Santoprene |
| Housing Material | Polycarbonate |
| Fitting Material | Polypropylene/PVC |
| Media Temperature (Minimum) | 32 °F |
| Media Temperature (Maximum) | 125 °F |
| Ambient Temperature (Maximum) | 125 °F |
| Overall Height | 6 in |
| Overall Length | 10.6 in |
| Overall Width | 5.3 in |
| Standards | cCSAus; CE; ETL; UL 96F0 |
| Country of Origin | United States |
