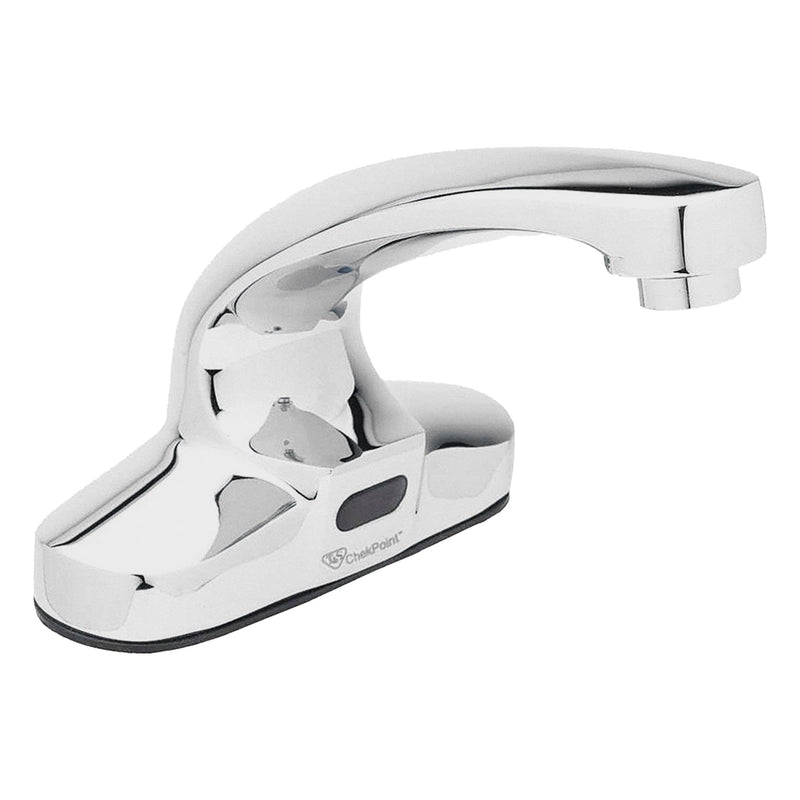

T&S Brass EC-3103 Bathroom Sensor Faucet, Checkpoint, Brass, Chrome, Centerset Deck Mount, Arc, Battery, 2.2 gpm
Original price
$810.51
-
Original price
$810.51
Original price
$810.51
$810.51
-
$810.51
Current price
$810.51
Bathroom Faucet, Faucet Operation Sensor, Number of Handles 0, Faucet Handle Type None, Connection 3/8 In. Compression, 2.20 gpm Flow Rate, Number of Holes 1, Mounting Hole Center to Center 4 In., Body Material Brass, Faucet Spout Shape Straight, ADA Compliant Yes, Drain Type None, Mounting Type - Faucet Surface, Power Source Battery, Voltage 110VDC, Spout Length 4-7/8 In., Sensor Range 2 In. to 20 In., Valve Type Compression, Faucet Finish Chrome, Height 5-1/16 In.
| Material | Brass |
|---|---|
| Application | Commercial |
| Finish | Chrome |
| Faucet Operation | Sensor |
| Flow Rate | 2.2 gpm |
| Voltage | 110V DC |
| CEC Compliant | Non CEC Compliant |
| Commercial / Residential | Commercial |
| Replacement Cartridge | None |
| Body Material | Brass |
| Faucet Type | Bathroom Sink Faucet |
| Ligature Resistant | No |
| Battery Charger CEC Compliant | Non CEC Compliant |
| Vandal Resistant Features | Vandal Resistant Outlet |
| Residential / Commercial | Commercial |
| Power Source | Battery |
| Drain Type | None |
| Number of Holes | 3 |
| Faucet Spout Shape | Low Arc |
| Connection | 3/8" Compression |
| ADA Compliance | ADA Compliant |
| Number of Handles | 0 |
| ADA Compliant | Yes |
| Faucet Finish | Chrome |
| Mounting Type - Faucet | Deck |
| Sensor Range | 5 1/2 in |
| Standards | ASME A112.18.1/CSA B125.1, NSF 372, NSF 61/9, UL Certified |
| Series | Checkpoint |
| Flow Outlet Type (Faucet) | Aerated |
| Includes | Control Module |
| Faucet Handle Type | None |
| Flow Outlet Type - Faucet | Aerated |
| Features | 4 in deck mount faucet w/ polished chrome plated brass body with integral spout, 2.2 GPM vandal resistant aerator, Series 8 (B-0199-08), Water resistant control module w/ internal flow control switches for adjusting auto time out & shut off delay settings, Optional auto flush feature flows water for 30 seconds after every 12 inactive hours, Plug in AC transformer or (4) AA battery (DC) power options, Mechanical temperature mixing valve with check valves, 18 in flexible stainless steel supply hoses with 3/8 in compression connections, Low battery LED indicator light, Material: Polished chrome plated brass body |
| Flow Outlet Type | Vandal Resistant Aerator |
| Mounting Type | Deck |
| Spout Reach | 4 7/8 in |
| Temperature Control | Adjustable Temperature |
| Water Inlet Connection Type | Push in Compression |
| Faucet Activation | Motion Sensor |
| Faucet Body Material | Brass |
| Replacement Cartridge Mfr. Model Number | 5EF-0006 |
| Valve Type - Faucets | Hot/Cold Cartridge |
| Max. Mounting Hole Center Distance | 4 in |
| Battery Type | AA |
| Mounting Hole Center-to-Center Distance - Maximum | 4 in |
| Operation Method | Motion Sensor |
| Ligature Resistance | Not Ligature-Resistant |
| Number of Mounting Holes | 2 |
| Number of Batteries | 2 |
| Product Type | Sensor Faucet |
| Includes Batteries | Batteries Included |
| Sensor Range - Minimum | 3/4 in |
| Mounting Hole Center-to-Center Distance - Minimum | 4 in |
| CEC Compliance | Not CEC Compliant |
| Flow Rate - Maximum | 2.2 gpm |
| Temperature - Maximum | 140 Degrees F |
| Temperature - Minimum | 40 Degrees F |
| Time Out | 30 sec |
| Sensor Range - Maximum | 12 in |
| Inlet Connection Type | Compression |
| For Location | Bathroom |
| Pressure - Maximum | 125 psi |
| Spout Shape | Arc |
| Vandal Resistance | Vandal-Resistant Outlet |
| Warranty | 1 yr Parts |
| Flow Type | Aerated |
| Includes Handle | Handle Not Included |
| Water Supply Type | Hot and Cold Lines |
| Compatible Cartridge Manufacturer Part Number | 5EF-0006 |
| Country of Origin | United States |
